Stn 2.7 Inch 128*64 Resolution Stn for Minitype Handheld Device
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG12864-2701
Display Technology
STN
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven
LCD Drive Mode
Static Drive LCD Module
Customized
Customized
Number of Dots
128*64
View Angle Direction
6’clock
Active Area
55.01*27.49mm
Outline Dimension
82.20*60.42*11.35mm Max.
Operating Temperature
-20+70
Storage Temperature
-30~+80
Backlight
LED
Driver IC
St7565r or Compatible IC
Viewing Size
60.5*33.0mm
Driver Mode
1/64 Duty 1/9bias
Transport Package
Standard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
10000/Month
Product Description
Specification

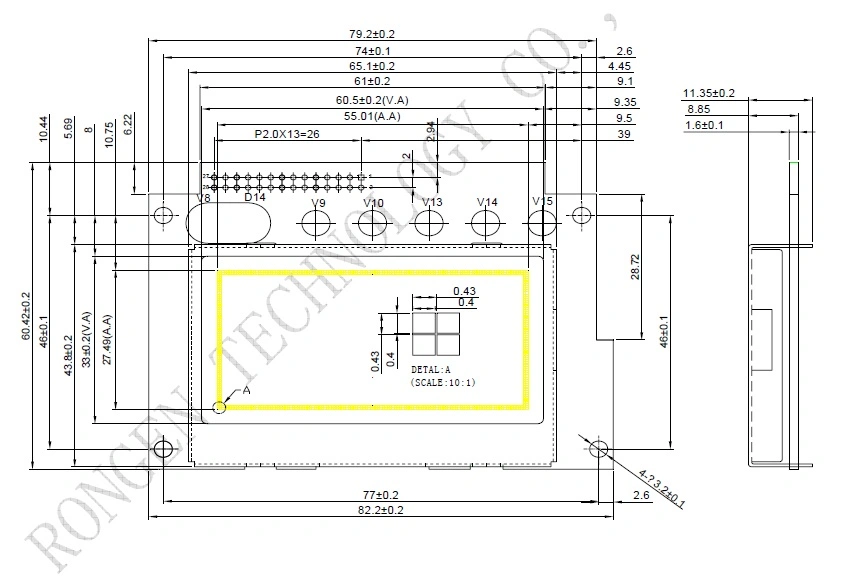

Outline drawing
| Screen size | 2.7"(Diagonal) |
| Display color | Black |
| Background color | Yellow Green |
| Type | STN |
| View angle direction | 6'clock |
| Driver mode | 1/64 DUTY 1/9BIAS |
| Backlight | LED Y/G |
| Driver IC | ST7565R or compatible IC |
| Number of Dots | 128*64 |
| Dot size | 0.4*0.4mm |
| Dot pitch | 0.43*0.43mm |
| Viewing size | 60.5*33.0mm |
| Active area | 55.01*27.49mm |
| Outline dimension | 82.20*60.42*11.35mm Max. |
Outline drawing
