Ronen Stn 2.6 Inch 16*2 LCD Module Display
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG1602-2601
Display Technology
STN
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven
LCD Drive Mode
Static Drive LCD Module
Customized
Customized
Number of Dots
16 X 2
Viewing Size
64.3 X 16.3mm
View Angle Direction
6’clock
Active Area
55.46 X 10.76mm
Outline Dimension
90.0 X 31.0 X 9.6mm Max
Data Bus
8 Bit
Driver Mode
1/64 Duty 1/9 Bias
Operating Temperature
-20+70
Storage Temperature
-30~+80
Backlight
LED
Transport Package
Standard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
9013803010
Production Capacity
10000/Month
Product Description
Specification

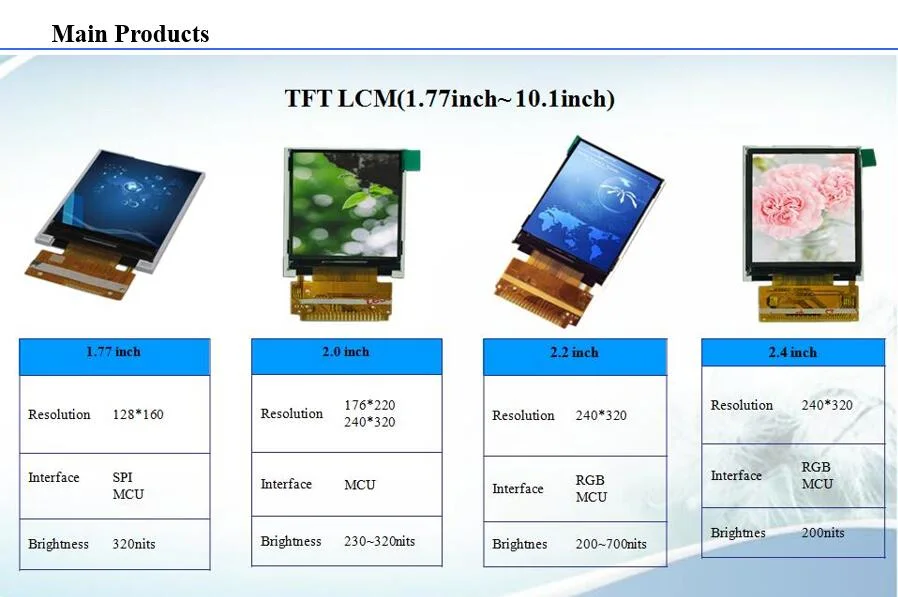

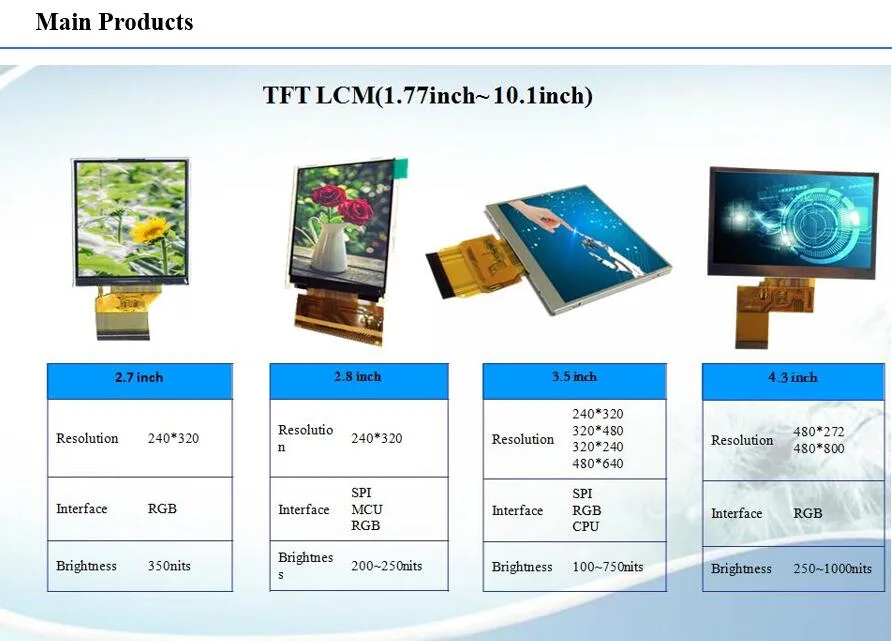

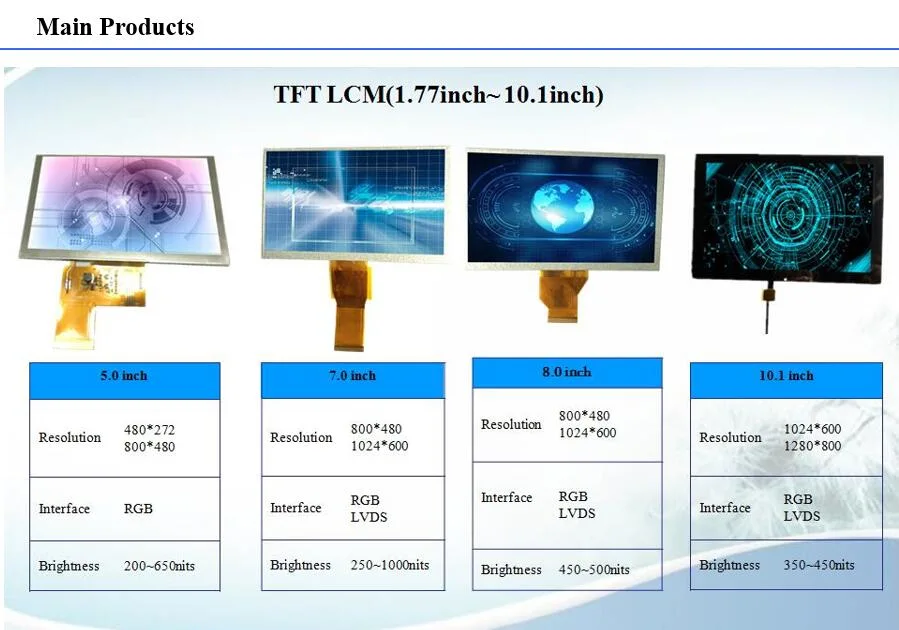

Our LCD module size are from 1.77 inch to 10.4 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
Outline drawing
| Screen size | 2.6"(Diagonal) |
| Display color | Display color:Black |
| Background color | Yellow Green |
| Type | STN |
| View angle direction | 6'clock |
| Driver mode | 1/64 DUTY 1/9 BIAS |
| Backlight | LED |
| Controller IC | 7066/7065 |
| Data bus | 8 bit |
| Operation | -20 oC ---- +70oC |
| Storage:-30 oC ---- +80oC | -30 oC ---- +80oC |
| Number of Dots | 16 x 2 |
| Dot size | 0.54 x 0.52mm |
| Dot pitch | 0.64 x 0.62mm |
| Viewing size | 64.3 x 16.3mm |
| Active area | 55.46 x 10.76mm |
| Outline dimension | 90.0 x 31.0 x 9.6mm Max. |
Our LCD module size are from 1.77 inch to 10.4 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display | mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
| Mid-size TFT LCD display | mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
| Big-size TFT LCD display | educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
| TN/STN//FSTN/OLED | elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
| Plastic mould | industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc. |
Outline drawing
