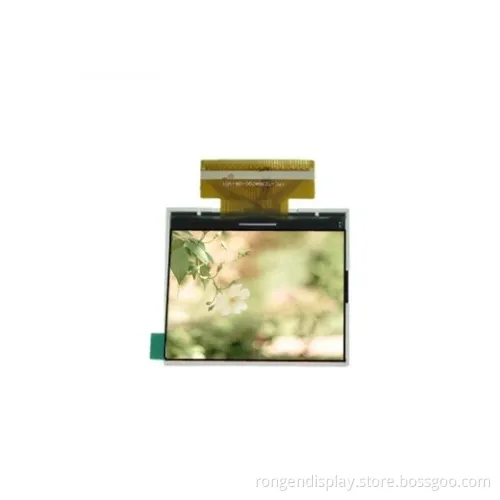

Ronen 2.36 Inch 480X234 ODM LCD Screen China LCD Display

Ronen 2.36 Inch 480X234 ODM LCD Screen China LCD Display

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG-T236MZQO-06

Display Technology

TFT

DOT-Matrix Graphic LCD Module Type

Row/Column-Driven Control Type

LCD Drive Mode

Multiplex Drive LCD Module

Customized

Brand

Ronen

Product Name

Rg-T236mzqo-06

Resolution

480X234

Luminance

350CD/M2

Contrast Ratio

500:1

Size

2.36 Inch

Active Area

48.0×35.69mm

LCD Type

TFT LCD Screen

Viewing

12 O′clock

Operating Temperature

-20~70

Storage Temperature

-30~80

Transport Package

Stardard

Specification

CE, RoHS, SGS

Trademark

Ronen

Origin

China

HS Code

9013803010

Production Capacity

100, 000/Month

Product Description

General specifications:

China lcd display 2.36 inch odm lcd screen

Item	Contents
LCD Type	TFT
Display Color	262K
View Direction	12 O'Clock
Gray Scale Inversion Direction	6 O'Clock
Operating Temperature	-20+70 °C
Store Temperature	-30~+80 °C
Module Size	Refer to outline drawing
Active Area(W×H)	48.0×35.69mm
Number of Dots	480×234 dots
Controller	OTA5182A
Power Supply Voltage	3.3V
Outline Dimensions	Refer to outline drawing
Backlight	LEDs(white)
Weight
Interface	RGB888
