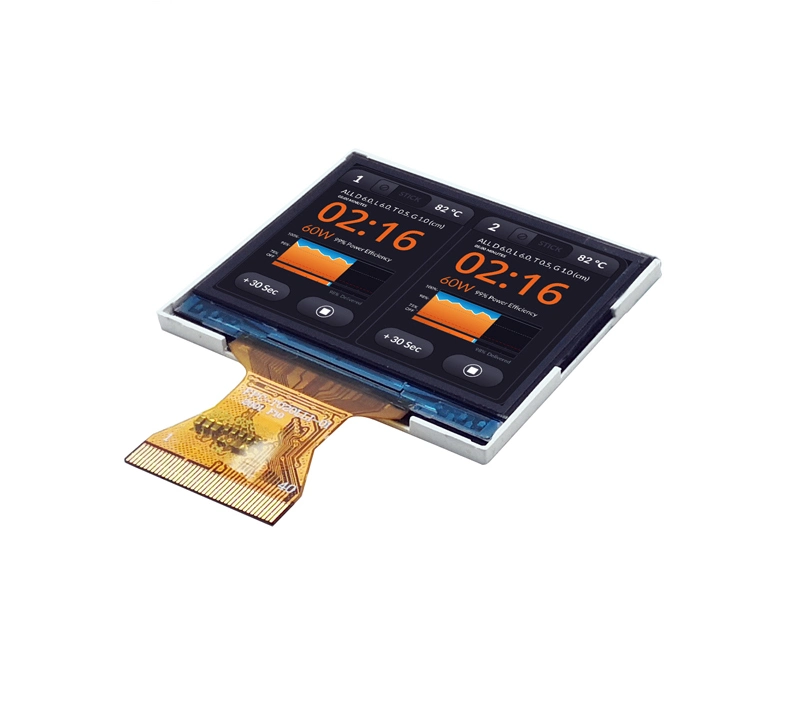

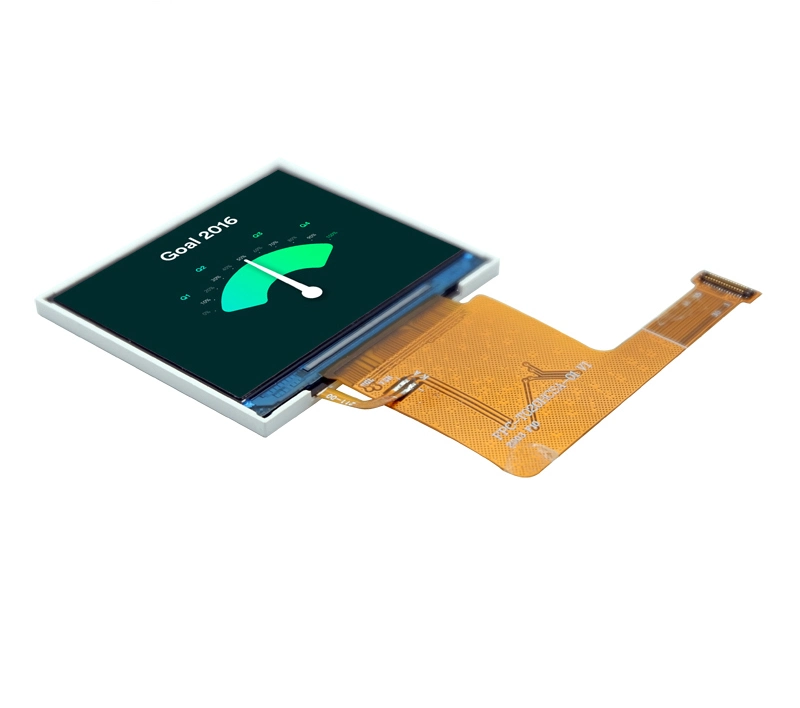

Ronen 2.0 Inch 176*220 TFT Microdisplay LCD Screen Controller Ili9225g
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG020NHT-01
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
Number of Dots
176*220
Luminance
320CD/M2
Contrast Ratio
500:1
Active Size (W*H)
31.68*39.60
Module Size (W*H*T)
37.68*51.30*2.23
Diver IC
Ili9225g
Interface Type
8bit MCU
Backlight Type
3-Chip White LED
Operating Temperature
-20~+70
Storage Temperature
-30~+80
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
RonGen
Origin
China
HS Code
9013803010
Production Capacity
100000/Month
Product Description
Specification
| ITEM | CONTENTS |
| LCD Type | TFT |
| Display Color | 65K |
| View Direction | 12 O'Clock |
| Gray Scale Inversion Direction | 6 O'Clock |
| Operating Temperature | -20+70 °C |
| Store Temperature | -30~+80 °C |
| Module Size | 37.68*51.3*2.23mm |
| Active Area(W×H) | 31.68*39.6mm |
| Number of Dots | 176*220 dots |
| Controller | ILI9225G |
| Power Supply Voltage | 3.3V |
| Outline Dimensions | Refer to outline drawing |
| Backlight | LEDS(white) |
| Interface | RGB888 |
Outline drawing
