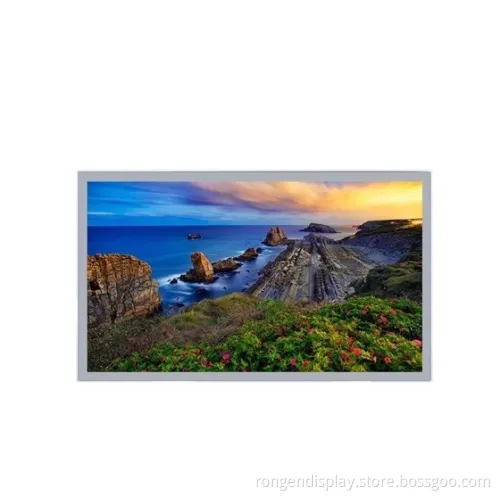

ODM/OEM High Speed Response 18.5inch 1366X768/1920X1080 LCD for Desktop Monitors Laptop LCD
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG185YXS-01
Widescreen
Widescreen
Response Time
5ms
3D
Not 3D
Interface Type
Lvds
Input Terminals
30 Pins
Resolotion
1366*768
Luminance
250 CD/M2
Contrast Ratio
1000:1
Active Area
409.8 (H)*230.4(V) mm
Outline Size
430.4*254.8*10.8 mm
Operation Temperature
0 ~ 50
Storage Temperature
-20~60
Transport Package
Stardard
Specification
CE, RoHS, SGS
Trademark
Rongen
Origin
China
HS Code
9013803020
Production Capacity
10, 000/Month
Product Description

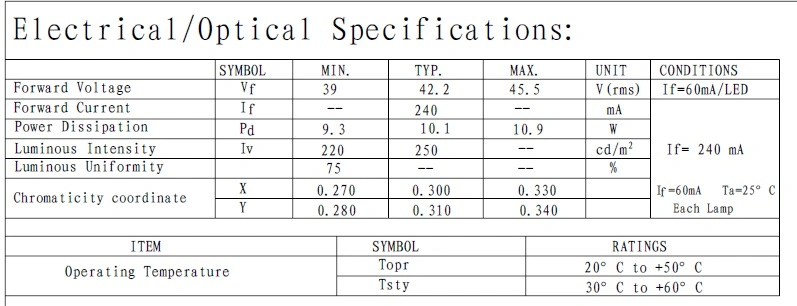

Specification:

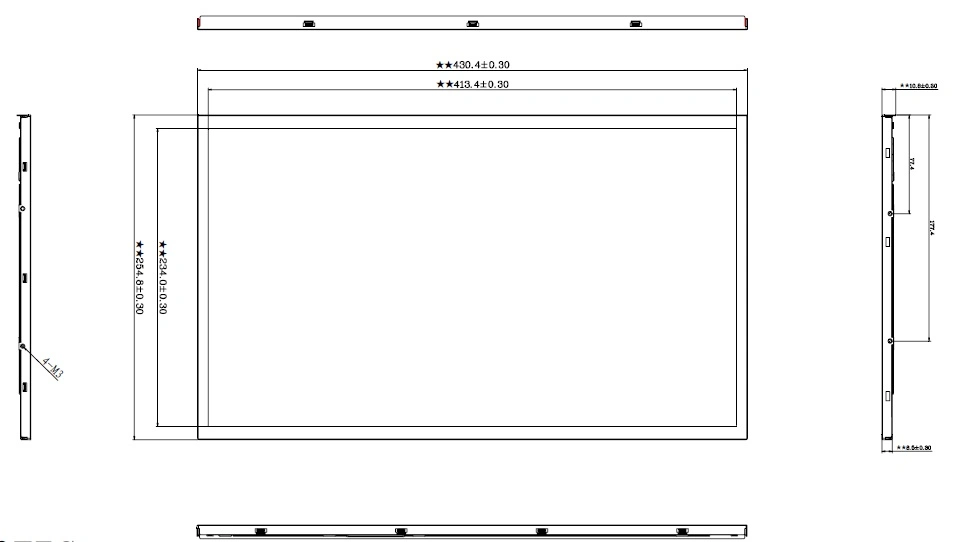

Merchanical Drawing:
Features :
Applications:
| Parameter | Specifications |
| Active area | 409.8 (H) × 230.4(V) |
| Module size | 430.4*254.8*10.8 |
| Pixel Format | 1920(H) × 1080(V) (1pixel = R + G + B dot) |
| Pixel configuration | R,G, B vertical stripe |
| Display mode | Normally White |
| Luminance of white | 220(TYP) CD/M2 |
| Interface | LVDS |

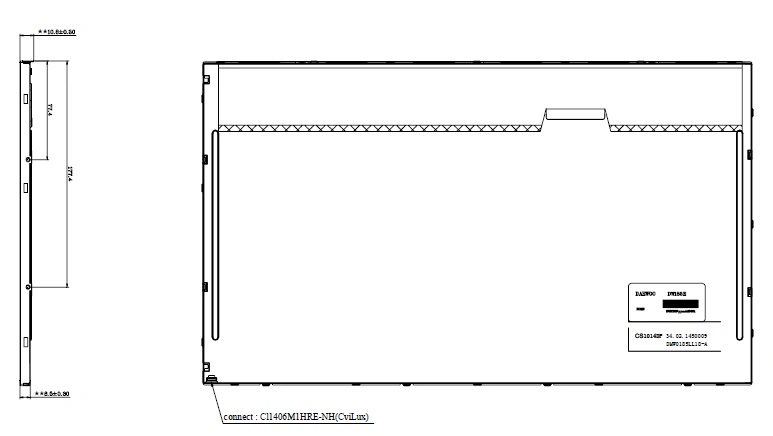

Merchanical Drawing:
Features :
- High contrast ratio, high aperture structure
- High speed response
- FHD (1366 x 768 pixels) resolution
- White LED Edge slim Backlight (1-side)
- DE (Data Enable) only mode
- LVDS (Low Voltage Differential Signaling) interface (2pixel/clock)
- RoHS, Halogen Free
Applications:
- Workstation &desktop monitors
- Display terminals for AV application products
- Monitors for industrial machine
