12.3 Inch LCD Instrument Cluster Displays for Car

12.3 Inch LCD Instrument Cluster Displays for Car

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Info.

Model NO.

RG123KPW1-A30

Widescreen

Response Time

Not 3D

Interface Type

VGA

Resolution

1920*720

Luminance

450CD/M2

Contrast Ratio

1000:1

Active Area

162.0*121.5mm (Wxh)

Viewing Angle

85/85/85/85

Driver IC

Hx8255-a-Lt / Hx8696-a-Lt

Colors

16.7m

Interface Pins

8 Bit Lvds -50pins

Transport Package

Standard

Specification

CE, RoHS, SGS

Trademark

Rongen

Origin

China

Production Capacity

15000PCS/Month

Product Description

Features
12.28 (8:3 diagonal) inch configuration
16.7M
ROHS / Halogen Free Compliance

General Information
Outline Dimension: 308.1(H)*130.0(V)*7.6(Typ.) mm
Display area : 292.032(H)*109.512(V) mm
Number of Pixel : 1920 RGB (H)*720(V) pixels
Pixel pitch : 0.1521(H)*0.1521 (V) mm
Pixel arrangement : RGB Vertical stripe
Display mode : Normally Black
Surface treatment : AG
Back-light : Single LED (Side-Light type)
Power Consumptionn : B/L System 9.18 (Max.) W

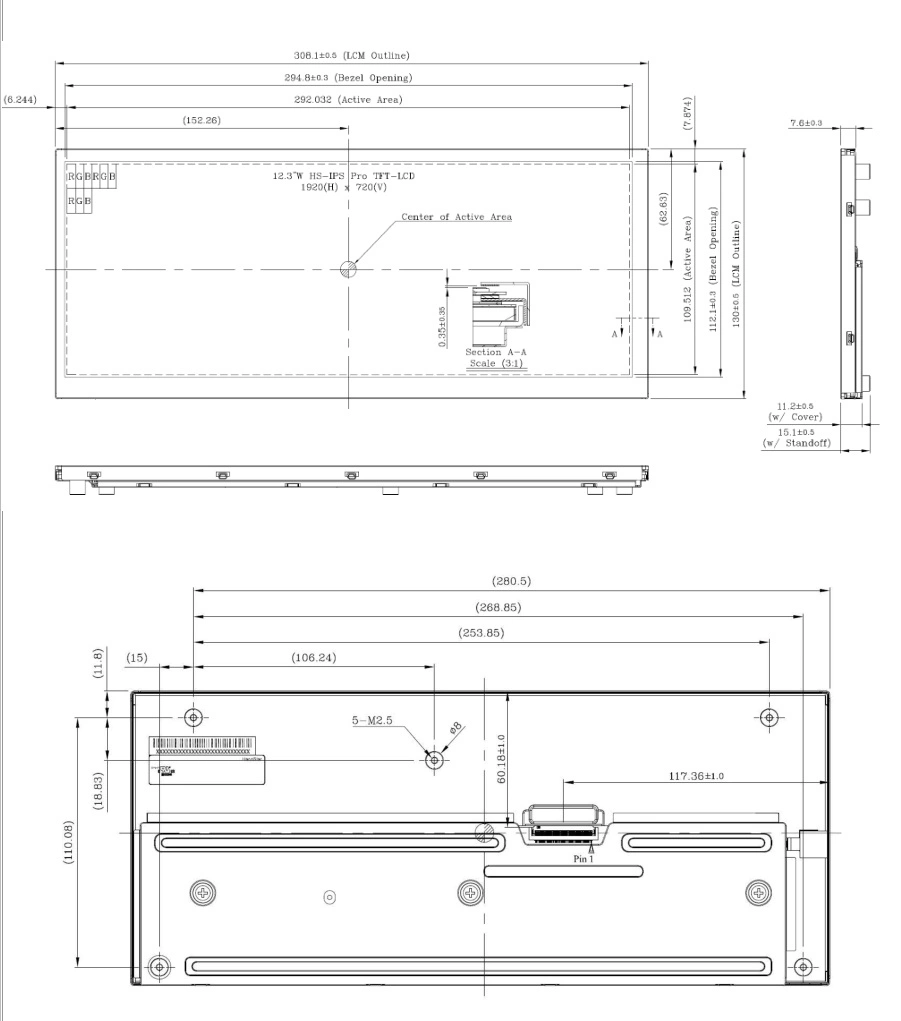

Merchanical Drawing
12.3 Inch LCD Instrument Cluster Displays for Car

Ronen have concentrate on designing and manufacturing display products for more than 12 years.We can offer monochrome tn/stn, cstn, tft and oled displays and other display components.Our transflective tft displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable tft displays,our product is your best choice.And our ips and ltps panels are wide viewing angles, they are widely used in automotive electronics applications and medical instruments.
Further more, each unit bears sgs, tuv and rohs marks.The innovative flat panel display and products provided by our elite team can keep pace with such a fast-changing global marketplace.We can also meet your display specifications, and satisfy your individual request.The most competitive and satisfying products have won us high reputation.
Now ronen display co.Ltd is becoming a qualified supplier of many noted companies.Professional technical support and good service is our permanent commitment for you.

Applications
Our LCD module size are from 2.8 inch to 15.6 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.

Product	Application
Small-size TFT LCD display	mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc.
Mid-size TFT LCD display	mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc.
Big-size TFT LCD display	educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc.
TN/STN//FSTN/OLED	elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc.
Plastic mould	industrial control equipment,electronic product,toy, Security Product,IT digital product, sports equipment,etc.
