Ronen 0.9inch TFT LCD Screen 80X160 LCM Driver IC St7735s for Coffee Machine
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Info.
Model NO.
RG-T009GES-22
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
Number of Dots
80*160
Luminance
100CD/M2
Contrast Ratio
500:1
Active Size (W*H)
11.52*20.16
Module Size (W*H*T)
15.8*27*1.66
Pixel Pitch (W*H)
0.144*0.126
Diver IC
St7735s
Interface Type
4-Wire/Spi 13pin
Backlight Type
1-Chip White LED
Colors
262K
Transport Package
Standard
Specification
CE. RoHS, SGS
Trademark
Ronen
Origin
China
HS Code
9013803010
Production Capacity
10000000/Month
Product Description
General Specification:

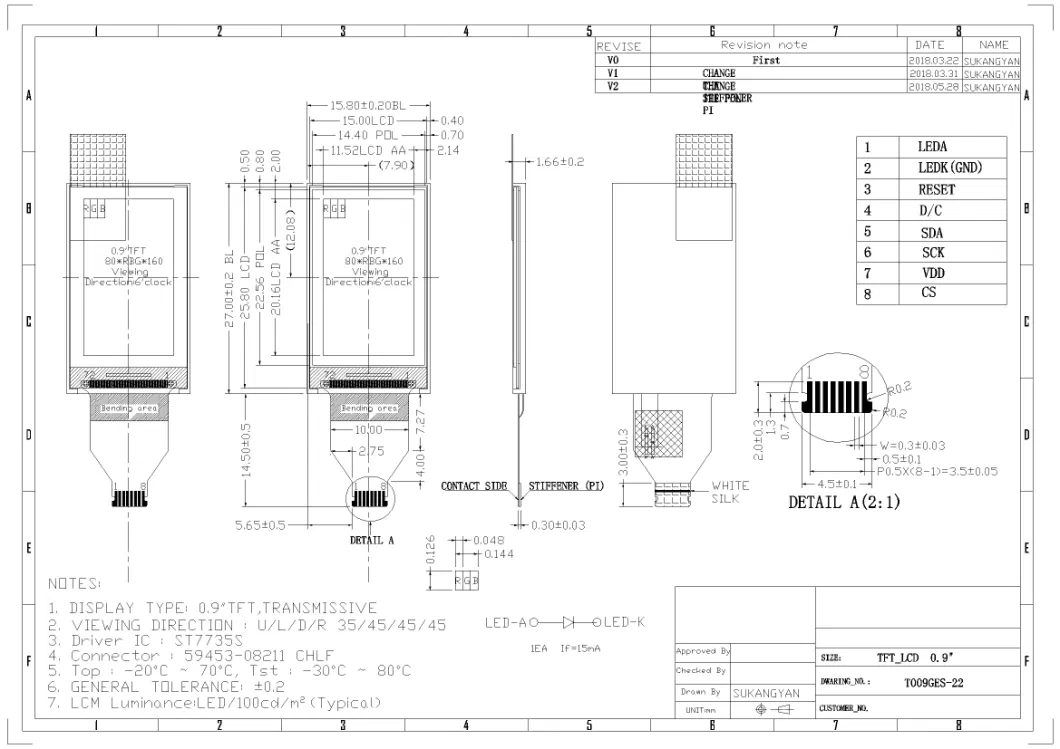

Mechanical Drawing:
Product Application:
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Feature | Specification | Unit | |
| Display Spec | Size | 0.9 | inch |
| Resolution | 80*160 | dots | |
| Pixel pitch | 0.144(H)*0.126(V) | mm | |
| Display Mode | TN/NW | - | |
| Viewing Direction | 6 | o'clock | |
| Gray Scale Inversion Direction | 12 | o'clock | |
| Luminance | 100 | cd/m2 | |
| Mechanical | LCM (W * H * D) | 15.80*27.00*1.66 | mm |
| Characteristics | Active Area (W * H ) | 11.52*20.16 | mm |
| With /Without TP | without TP | - | |
| LED Numbers | 1-LED | pcs | |
| Operation temperature | -20~+70 | ºC | |
| Storage temperature | -30~+80 | ºC | |
| Electrical | Interface | 4-wire-SPI 13PIN | - |
| Characteristics | LCM Power Supply | 2.8 | V |
| LED Power Supply | 3 | V | |
| Color Depth | 262K | - | |
| LCM Driver IC | ST7735S | - | |
| CTP Dricer IC | - | - | |
Mechanical Drawing:
Product Application:
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display (1.44inch~4.3inch) | mobile device, watch, toy, medical equipment, Office electronic equipment, camera, air-condition display, etc. |
| Mid-size TFT LCD display (5.0inch~10.0inch) | mobile device, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-condition display, etc. |
| Big-size TFT LCD display (10inch and above) | educational product, automotive product, video door phone, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc. |
| TN/STN//FSTN/OLED | elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | industrial control equipment, electronic product, toy, Security Product, IT digital product, sports equipment, etc. |
