Automatic New Model Tripod Turnstile

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	L/C, T/T, D/P, Paypal, Western Union

Product Description

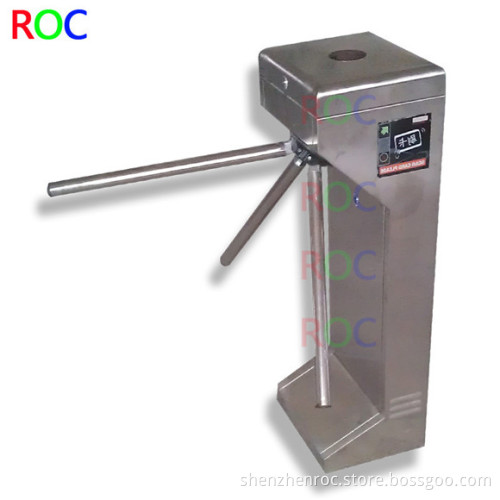

Automatic New Model Tripod Turnstile

1. Top quality.Provide 2 year warranty
2. CE, ROHS, FCC certificate.
3. Automatic Tripod Turnstile arm drop.

4. RS485 Interface with Tripod Turnstile
5. All list price just for EXW, not including any shipping fee
6. Different Style with Different Size
Automatic New Model Tripod Turnstile

Features:

1.Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.

2.If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.

3.Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to

use theTripod Turnstile.

4.Tripod Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.

5.When power off, the arm will be dropped down (optional set free passage when power off) to the request of fire protection.

When power on, the arm can lift by hand.

6.Emergency configuration: the tripod will drop automatically by power off to provide a clear walkway for escape in the event of an emergency

7.Control panel with count and LED digital function. Traffic-light: A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate

the direction of allowable passing

8.It can be used for intelligent control and management of the passage after equipped with diffent access control system.

9.A valid lock action can allow one passage at one time. It will lock automatically if passage through turnstile is not completed within pre-set time, the set time(from 2-60

seconds, by default, it is 10 seconds) can be set up with the built-in small keyboard or software.

10.Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).

Applications:

1.Vertical Tripod Turnstile is an electro mechanical turnstiles. Its unique mechanical drive design allow the arm to be pushed effortlessly and auto-rotate back without any

expensive electric motor

2.Vertical Tripod Turnstile can effectively control high volume human traffic ( up to 25 person per minutes ) while still maintaining a welcoming atmosphere. They can easily be

integrated with any electronic system for ticketing, access control or time attendance.

3.Vertical Tripod Turnstile is suitable for both indoor and outdoor(Shed). They are optimized economical solution for railway, bus station, factory, colleges, commercial

building, library, stadium, game park, hotel, super market, bank and etc.
