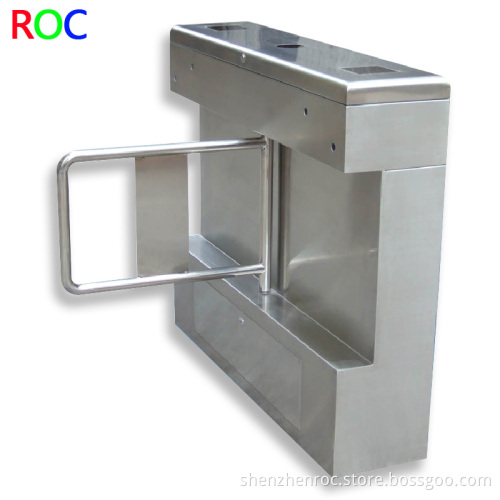

Access Control Semi-Auto Turnstile Swing Gate

Features:



1. Compact appearance,adapt to varied situation(no install place for card reader ), Reliable and durable, low noise and stable operation;

2. Standard electrical interface, various card reader acceptably to our swing gate & can be controlled by computer, Single/Double Directional Optional which can be controlled by both ways or single way;

3. When power off, the gate will be dropped down (optional set free passage when power off) to the request of fire protection, and automatically closes when power on;

4. Surface of mechanical electroplated with yellow dichotic acid, antirust and durable;



5. The swing gate installed Infrared sensor interfaces, could be expanded to Infrared testing function.



6. The horizontal bi-directional movement of the arm allows patrons to pass smoothly through the ADA swing gates, prevent pedestrians from being nipped and from being hurt;

7. Breakdown Self-checking and alarm indication, easy for maintenance and using;

8. The motor will stop working in case of the swing encounter of obstruct;

9. The swing gate arm will lock in case of not receving the open signal;

10. Arms synchronization. (adjustable): Arms are automatically locked until opening signal is received;

11. Anti illegal entering alarm: Light and sound alarm is generated when the illegal invasion and the tail followed;

12. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable;



Applications:



1. Cylinder Swing Gate was specifically designed for persons with disabilities. It has an innovative design to enable quicker and easier passage and to fit into tight spaces. Its cabinet was designed to withstand the impact of wheel chairs and carts. It can be for one-way and two-way, pedestrian traffic control. Operation in either a 1 x 90° or 2 x 90° bi-directional mode. These gates are also used to complement our turnstile and optical turnstiles especially where passage of larger items is required .With an opening of up to 900mm, items such as wheelchairs, trolleys and oversized packages are easily accommodated.

2. Cylinder Swing Gate is suitable for both indoor and outdoor(tent). It could be wildly used in the place where intelligentized management is needed such as station, port, subway, factory, mansion, intelligent community, hotel, club, marketplace, enterprise and institution etc.





Turnstile accessories:

1.Cylinder Swing Gate Mechanism (I single Mechanism)

2.Cylinder housing (304# Stainless steel at 1.5MM)

3.Cylinder Swing Gate Control Board

4.Cylinder Swing Gate Power Supply

5.Backup storage battery

6.Traffic Indicator

7.Passage Status Lights(option)

8.Correlation infrared(option)
