Product Description

Product Discription:

1. 5.7 inch resistive touch screen+TFT
2. High brightness

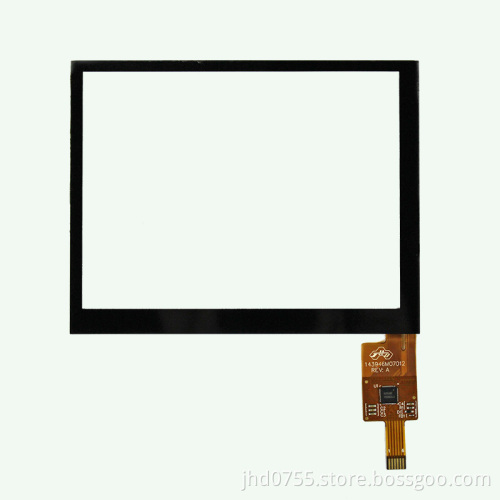

Product Drawing:

5.7 Inch Touch Panel for Motormeter

Product Parameter:

Size: 5.7"

Part number: 8946M07012

Lens size(mm): 127.0*99.63*0.7

Sensor size(mm): 121.33*92.6*0.7

Total thickness,without foam(mm): 1.6

Active area(mm): 116.2*87.4

Independent key: None

View area(mm): 115.2*86.4

Surface hardness(mm): ≥7H

Resolution ratio: 640*480

Linearity(mm): ±1.0(±1.5)

Touch point: 5

Working voltage: 2.8-3.6V

Interface I2C : 1.WAKE 2.VCC 3.GND 4.INT 5.SDA 6.SCL

Power (VDD=2.8V): Normal operation :6mA Monitor mode:4mA Sleep mode:0.03mA

Transmittance(%): ≥90

Haze value(%): <0.1

Operation temperature: -20°~70°

Storage temperature: -30°~80°

Product Advantages:

1. The type of touch panel can be customize. Capative and resistive screen are both available.

2. 4.3'' and 7'' TFT can be customize for high brightness back light. Visiable under the sun light.

3. Provide the CTP TOTAL SOLUTION, reduce the R&D time for customers.
