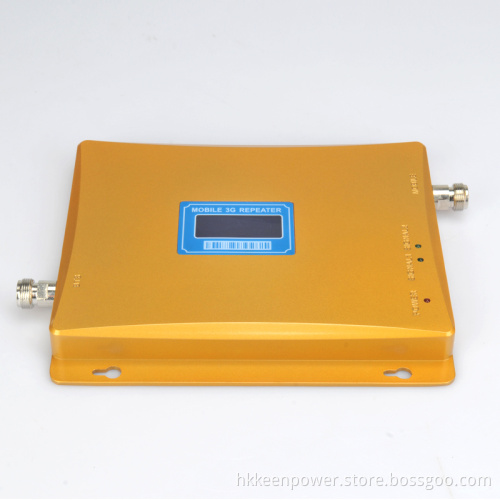

Golden Signal Booster GSM Signal Repeater for WCDMA 2100MHz
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen, China |
|---|---|
| Payment Type: | L/C, T/T, Paypal, Money Gram, Western Union |
Product Description
Product Description
Product Description
How is mobile phone signal repeater GSM/DCS/ 2G/3G/4G WORKING?
The outside antenna catches the low signal from the mobile base station and delivers it to the cell phone
Amplifier through the connection cable (coax).
After the signal is accepted by the phone amplifier, the device amplifies it.
Then this amplified signal goes through the connection cable (coax) to the inside antenna.
And after that, the amplified signal transmits to the cell phone.
A regular repeater DCS consists of:
12dB outdoor antenna
3dB indoor antenna
RG6-50 OHM indoor Coaxial Cable-5m
RG6-50 OHM outdoor Coaxial Cable-10m
Mounting accessories
AC power supply
User manual
Whole Package Weight2.3KG
Whole Package Size510x230x150mm(L x W x D)
Features
A. High-gain linear power amplifier
B. ALC and AGC function technology,
C. Ultra-low noise receive amplifier
D. There is no interference to the base station, right after the opening of the original system and the base station without the need to adjust parameters,
E. Stable and reliable electromagnetic compatibility design.
F. The base station dose not cause an increase in background noise, but will not lead to a decline in the quality of the base station communications
G. With full-duplex communication mode.
H. Dispel the heat effective reasonable, the structure is pretty, the volume is suitable.
The outside antenna catches the low signal from the mobile base station and delivers it to the cell phone
Amplifier through the connection cable (coax).
After the signal is accepted by the phone amplifier, the device amplifies it.
Then this amplified signal goes through the connection cable (coax) to the inside antenna.
And after that, the amplified signal transmits to the cell phone.
A regular repeater DCS consists of:
12dB outdoor antenna
3dB indoor antenna
RG6-50 OHM indoor Coaxial Cable-5m
RG6-50 OHM outdoor Coaxial Cable-10m
Mounting accessories
AC power supply
User manual
Whole Package Weight2.3KG
Whole Package Size510x230x150mm(L x W x D)
Features
A. High-gain linear power amplifier
B. ALC and AGC function technology,
C. Ultra-low noise receive amplifier
D. There is no interference to the base station, right after the opening of the original system and the base station without the need to adjust parameters,
E. Stable and reliable electromagnetic compatibility design.
F. The base station dose not cause an increase in background noise, but will not lead to a decline in the quality of the base station communications
G. With full-duplex communication mode.
H. Dispel the heat effective reasonable, the structure is pretty, the volume is suitable.
| Parameter data | Uplink | Downlink | |||
| 3G | 1920-1980mhz | 2110-2170mhz | |||
| Output Power | 20±2dBm | 20±2dBm | |||
| Gain | 65 ±2 dB | 65±2dB | |||
| Bandwidth | 60M | ||||
| Ripple in Band | ≤5dB | ||||
| 9KHz~1GHz | ≤ -36 dBm | ||||
| 1GHz~12.75GHz | ≤ -30 dBm | ||||
| VSWR | ≤3 | ||||
| MTBF | >50000 hours | ||||
| Power Supply | AC:100~240V, 50/ 60Hz;DC:12V 2A | ||||
| Power Consumption | < 5W | ||||
| Impedance | 50 ohm | ||||
| Mechanical Specification | |||||
| RF Connector | N-Female N | ||||
| Dimensions (D*W*H ) | 198*182*20(mm) | ||||
| Net weight | 1.2Kg | ||||
| Installation Type | Wall Installation | ||||
| Environment Conditions | IP40 | ||||
| Humidity | < 90% | ||||
| Operating Temperature | -10°C ~ 55°C | ||||
