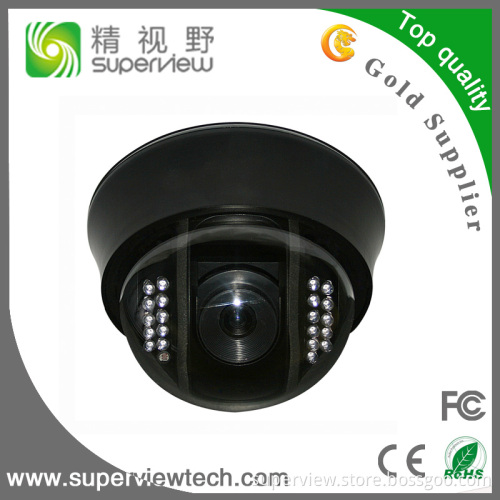

IR Plastic CMOS 700tvl Camera with IR-Cut (SJ30-21-C)

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	L/C, T/T, Paypal, Money Gram, Western Union

Product Description

Features:

3.5"Plastic IR Dome Camera
IR LED:¢5X21PCS IR LED IR Range: 20M
Lens: Board Lens 3.6mm
3-Axis bracket built in
Dimension : 91(H)*127(D) mm
Weight:0.32KG
Color: White, black.
with Cable control OSD, add US$1.00

Model No	SJ30-21-C
Image Sensor	1/3" CMOS
Effective Pixel ( H*V )	NTSC:811×508, PAL:795×596
Horizontal Resolution	700TV Lines
S/N Ratio	More than 48dB
Clock Frequency (MHZ)	NTSC:28.636 , PAL:28.375
Scanning System	2:1 interlace
Minimum Illumination	0 Lux (with IR LED ON)
Synchronous System	Internal, Negative sync.
Auto Electronic Shutter	NTSC:1/60s~1/100,000s,PAL:1/50s~1/100,000s
Gamma Characteristic	0.45
IR Project Distance	20 Meters ( with 21 Unit Infrared LED)
IR Status	Under 10 Lux by CDS
IR Power On	CDS Auto Control
Video Output	1Vpp,75 Ω
Auto Gain Control	Auto
Power / Current	12VDC(+/-10%)/200mA
Lens	3.6 mm
Dimension (mm)	91(H)*127(D) mm
Weight (g)	320g
Storage Temperature	-30~ +60 centigrade
Operating Temperature	-10~ +45 centigrade
