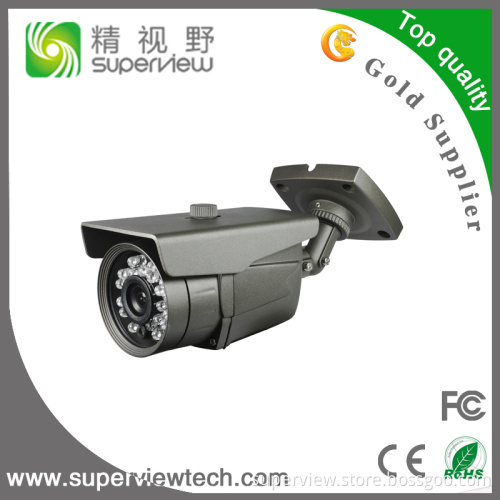

1/3'' IR Waterproof CMOS 700tvl Camera with IR-Cut (FS06-23D)

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	L/C, T/T, Paypal, Money Gram, Western Union

Product Description

Features:
IR Waterproof Camera
¢5X23PCS IR LED IR Range: 20M.
Lens: Board Lens 3.6mm
With 3-Axis bracket.
Dimension :112(L) x65(W) x140(H)mm
weight:0.35KG
Color:Korea Grey

Model No	FS06-23D
Image Sensor	1/3" CMOS
Effective Pixel ( H*V )	NTSC:811×508, PAL:795×596
Horizontal Resolution	700TV Lines
S/N Ratio	More than 48dB
Clock Frequency (MHZ)	NTSC:28.636 , PAL:28.375
Scanning System	2:1 interlace
Minimum Illumination	0 Lux (with IR LED ON)
Synchronous System	Internal, Negative sync.
Auto Electronic Shutter	NTSC:1/60s~1/100,000s,PAL:1/50s~1/100,000s
Gamma Characteristic	0.45
IR Project Distance	20 Meters ( with 23Unit Infrared LED)
IR Status	Under 10 Lux by CDS
IR Power On	CDS Auto Control
Video Output	1Vpp,75 Ω
Auto Gain Control	Auto
Power / Current	12VDC(+/-10%)/200mA
Lens	3.6 mm
Dimension (mm)	112(L) x65(W) x140(H)mm
Weight (g)	350g
Storage Temperature	-30~ +60 centigrade
Operating Temperature	-10~ +45 centigrade
