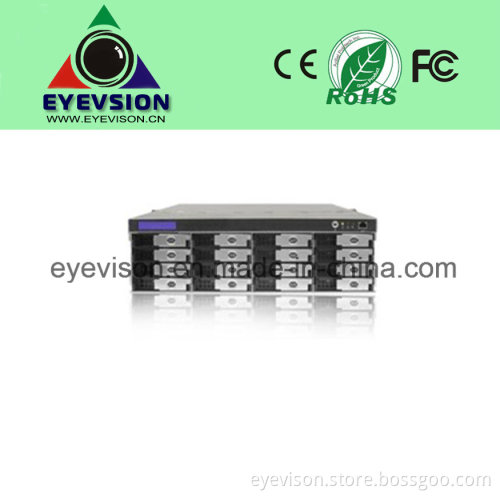

16 Hdds Linux Server for NVR (EV-1616lss)

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong Province of China
Payment Type:	L/C, T/T, Western Union

Product Description

Specifications:
Machine -chip solution using SAS expanders PMC-Sierra 's PM8388 SXP 24 channels X3G
PM8388 features:
· Flexible 24-port SAS expander devices.
· Virtual SSP target / initiator port.
· Low latency connections arbitration.
. Support for 1024 entries in the routing table , direct routing and subtractive routing.
· Integrated non-blocking cross- connect switch allows any port to any port.
· Any SAS wide port configuration.
· STP bridge function allows SAS or SATA target device is connected to any port.
· Integrated RISC processor SAS SMP support functions and SES.
· Three configurable multi-master or slave mode TWI interface , the external interface device configuration and control.
· Debug UART interface support.
. SFF-8485 standard serial GPIO (SGPIO) interface provides up to 144 GPIO expansion.

SAS JBOD storage system ~ 3U 16 -bay supports 64TB, supports up to 256 SAS or SATA hard drives,
system storage can be flexibly expanded to 15 units cascade.
Overall storage solution: supports 28 to 268 hard drives (1T ~ 4T), the maximum disk capacity 1072T.
Storage Management Server: Quanta S99K 2U (Intel 16 -core thread Xeon 2.27G, 32G RAM).
Storage: PMC Rack (16 * 3.5 HDD).
Supports cascading 15 PMC Rack enclosures extended to 256 bit Maximum 1072T.
Overall storage solution B: 24 to 264 hard drives support (1T ~ 4T), the maximum disk capacity 1056T.
