1~16 Layers 0.2~3.2mm Circuit Board PCB
  • 1~16 Layers 0.2~3.2mm Circuit Board PCB
  • 1~16 Layers 0.2~3.2mm Circuit Board PCB
  • 1~16 Layers 0.2~3.2mm Circuit Board PCB
  • 1~16 Layers 0.2~3.2mm Circuit Board PCB
  • 1~16 Layers 0.2~3.2mm Circuit Board PCB
  • 1~16 Layers 0.2~3.2mm Circuit Board PCB
1~16 Layers 0.2~3.2mm Circuit Board PCB
1~16 Layers 0.2~3.2mm Circuit Board PCB
1~16 Layers 0.2~3.2mm Circuit Board PCB
1~16 Layers 0.2~3.2mm Circuit Board PCB
1~16 Layers 0.2~3.2mm Circuit Board PCB
1~16 Layers 0.2~3.2mm Circuit Board PCB

1~16 Layers 0.2~3.2mm Circuit Board PCB

Get Latest Price
Payment Type:
T/T, Paypal, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen, China
Payment Type: T/T, Paypal, Western Union
Product Description
Product Description
Comply with RoHS/UL, ISO9001:2008 & ISO/TS16949:2009, TS14001:2004, 1~16layers, 0.2~3.2mm thickness, 0.3~6.0oz copper thickness
FR4, FR4(TG130,150,170), FR1,CEM-1, CEM3, Aluminum based, HF (Rogers,Teflon), HDI and Sequential Lamination, Flexible, Flex-rigid and Rigid PCBs


What will you get from FZ-PCB?
*Reliable and stable quality with more than 12 years pcb manufacturing experience.
*Quick response & 24 hours available service.
*Professional sales service & advice.
*Fulfillment of our promises, NO lies.
*Protecting your Intellectual property. All our staff of trained professionals are working under a strict confidential contract.
*Technology support, provide the professional design advice, assisted in reviewing the gerber.

How to get a quote?

Pls send gerber file with these formats: .PCB / .P-CAD / .DXP / .CAD / .Gerber

a) Base material: FR4/ AL/ FPC/ CEM-1/ CEM-3/ 94v0/ Rogers

b) Board thickness: 1.6mm-3.2mm/ 0.3mm-1.2mm

c) Copper thickness: Hoz/ 1oz/ 2oz/ 3oz/ 4oz, ect

d) Surface treatment: HASL/ ENIG/ LF-HAL/ Immersion Tin/ Immersion Sin/ OSP

e) color of solder mask and silkscreen: Green/White/Black/Red/Blue/Yellow

f) Quantity and board size


Package & Shipping Method:
1. Vacuum package with silica gel, Carton box with packing belt.
2. By DHL, UPS, FedEx, TNT
3. By EMS (Usually for Russia Clients)
4. By sea for mass quantity according to customer's requirement

PCB Show

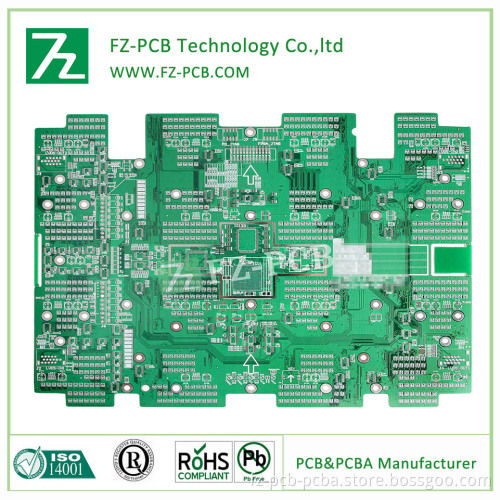

1~16 Layers 0.2~3.2mm Circuit Board PCB1~16 Layers 0.2~3.2mm Circuit Board PCB
Factory glance

1~16 Layers 0.2~3.2mm Circuit Board PCB
Files Gerber, Protel, Powerpcb, Autocad, Orcad, etc
Material FR-4, Hi-Tg FR-4, Lead free Materials (RoHS Compliant) , FR1, CEM-3, CEM-1, Aluminium, High frequency Material (Rogers, Teflon, Taconic), Polymide.
Layer No. 1 - 16 Layers
Board thickness 0.0075"(0.2mm)-0.160"(4.0mm)
Board Thickness Tolerance ±10%
Copper thickness 0.3OZ - 6OZ
Impedance Control ±10%
Warp and Twist ≤0.075%
Peel Strength ≥61B/in(≥107g/mm)
Min Trace Width (a) 3mil
Min Space Width (b) 3mil
Min Annular Ring 0.004"(0.1mm)
SMD Pitch (a) 0.012"(0.3mm)
pcb with green solder mask and LF-FREE surface finishing BGA Pitch (b) 0.027"(0.675mm)
Register tolerance 0.05mm
Min Solder Mask Dam (a) 0.005"(0.125mm)
Solder mask Clearance (b) 0.005"(0.125mm)
Min SMT Pad spacing (c) 0.004"(0.1mm)
Solder Mask Thickness 0.0007"(0.018mm)
Hole size 0.008"(0.20mm)-- 0.257"(6.5mm)
Hole Size Tol (+/-) ±0.003"(±0.0762mm)
Max PTH Aspect Ratio 10:1
Hole Registration 0.003"(0.075mm)
HASL 2.5um
Lead free HASL 2.5um
Immersion Gold Nickel  3-7um  Au:1-3u''
OSP 0.2-0.5um
Panel Outline Tol (+/-) ±0.004''(±0.1mm)
Beveling 30°45°
V-cut 15° 30° 45° 60°
Surface finish HAL, HASL Lead Free, Immersion gold, Gold plating, Gold finger, immersion silver, immersion Tin, OSP, Carbon ink,
Certificate  ROHS  ISO9001 TS16949  SGS  UL
Special requirements Buried&blind vias, Impedance control, via plug, BGA soldering and gold finger
