Ultra Thin LED Round Panel Light 240mm 14W

Get Latest Price

Payment Type:: T/T, Western Union, cash

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	T/T, Western Union, cash

Product Description

Ultra thin Led Round Panel Light 240mm 14W

Specification:

* Input Voltage AC96-265V

*Luminous Flux >350Lm

* LED Qty 40PCS

* Color Cool white /Red /Green/Blue/Yellow/Orange/Warm white/Natural white/RGB

* Color Temperature 2800-3200K(Warm white)5000-5500K(white) 6000-6500K(Cool white)

* Life time >50,000 Hours

* Certifications CE,FCC,ROHS

* Size ¢145*18mm

* IK Code IK01

* IP Code IP41

*Luminaires Class Class II

* Fixing Ways n-built

Pictures for reference:

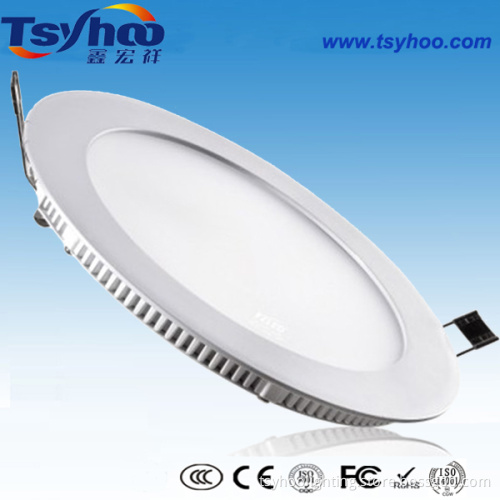

Ultra Thin LED Round Panel Light 240mm 14W

Notes:
1,All dimension units are millimeters.
2,All dimension tolerance is ±0.5mm unless otherwise noted.

Packing:

Outer Carton: 640*400*231mm
Inner Box:298*216*40mm
Weight/BOX:0.65KG
Quantity:30pcs/CTN
Weight/CARTON:20KG

Safety Notice for Using:

.Please always use the light out of its package.
.Before starting use of the light ,please check if the light was damaged during transportation.if any damage shown,please DO not install or use it.
.Any maintenance should be performed by trained professionals only.
.Keep packaging material away from the rech of children and pets.Risk of suffocation!
.Caution.The packaging contains small parts that may be swallowed by children.
.Never leave childree unattended in the vicinity of the lights and do not allow them to play with electrical devices.
.Try to avoid looking directly in the LED beam-especially for extended periods of time.Do not shine the LED light in another person's eyes.
.Never cover the lights by other objects.
.Never allow the light to come into contact with open flames or external heat sources.
.The products need to re-repair inspection or special treatment of retirement after service time.

Maintenance:

.Prior to cleaning the light,make sure it has been disconnected form the power supply.
.Use a dry or slightly moistened cloth for cleaning.
.Never use any chemicals or abrasives for cleaning.
Disposal:

.Used electronic devices must be collected for recycling and cannot be deposited together with daily garbage.

Installation:

.This product should be installed by trained electricians.
.Check integrality of the products when unpack the packing.
.The distance between the light and any flammable materials must not be less than 0.2m.The distance between the upper part of the installed light and the ceiling must not be less than 2cm.The light must not be installed into ceilings or walls that contain heat-insulating material.
. The main cable must not connect with the low volage cable or the surface-mounted lights.
.Guide the lights' connecting cables through the drilled-out hole,and fix the surface-mounted lights with the pre-fitted clips.Make sure that these are securelyconnected to the base material.
.When laying the cables,make sure that the cables and plugs are not subjected to
any tensile or twisting forces.Fit the cable tension relieving mechanisms to the
connection points of the surface-mounted lights .Do not kink cables.Output
cables should be laid separately and at adistance from other cables.
.After installation,connect the transformet to the mains supply.
Proceed by connecting the wiring cables to the luminaries.Usually,the brown
(or black)wire is the Live wire,connect it with the terminal marked'L'.The blue
wire is Naughty wire,connect it with the terminal marked'N'.
