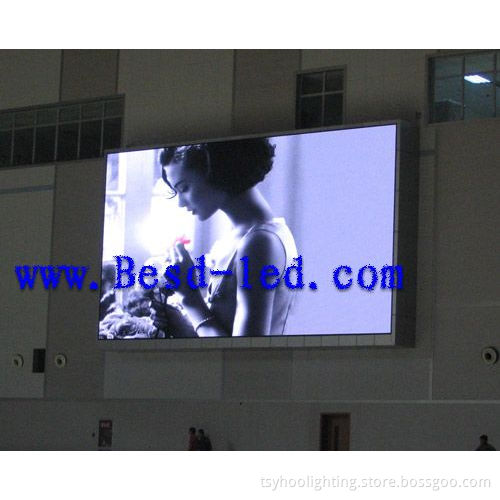

LED Sign (BESD-IFP5)

ITEMS PARAMETERS
Pixel Pitch 5mm
Size of Module 160*160mm
Density of Pixel 40000 per sqm
Pixel Composition 1R1G1B
LED Encapsulation SMD3524
Resolution of Module 32*32
Power Consumption of Module Below 30W
The Optimum View Distance 5-15m
The Optimum View Angle H: 160 V: 120
Maximum Power Consumption 2000W per sqm
Driving Components MBI502 X G X or other Compatible IC (Optional)
Driving Method 1/16Scan Constant Driving
Frame Frequency Over 360Hz
Refresh Rate Over 600Hz
Luminnance of White Balance Over 2500CD per sqm
Environment Temperature for Working -20- +50(Optional)-30- +50 Unit: Centi-degree
Working Voltage 220V± 10%(or)110V± 10%
Mean Time Between Failure Over 5000(hours)
Life Span Over 100000(hours)
Out-of-Control Rate Below 0.0001
Input Signal RF/S-Video(etc. )
Brightness Adjustment 256 levels of each color(R\G\B)can be adjusted automatically and 100 levels of each color can be adjusted manually
Control System PCTV non-linear editting card + DVI display card + main controling card+optic ribre transmission(Optional)
China Manufacturer We specialise in LED display, LED screen, LED sign, LED display board, full color LED display, rental LED display, curtain LED display, moving LED display etc. Welcome your contact!

Viewing angle: 160 degrees
Working temperature: : (-20--60) degrees
Control mode: Dynamic scanning, VGA sync
Scanning frequency: ≥ 140Hz/s
Out of control DOT: No
Communication distance: ≤ 100m(twisted pair, no relay)
Working voltage: Mains supply(220V± 10%)
Maximum power consumption(w/m2): 800
Life span: ≥ 100000hours
