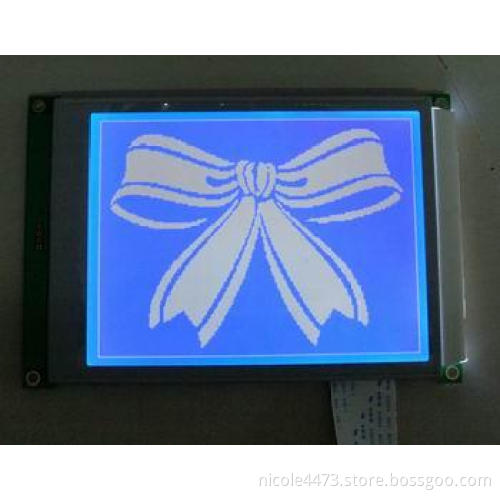

Grahpic LCM 320x240 LCD Modules
- Payment Type:
- T/T
- Incoterm:
- FCA HONGKONG
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100000pcs |
| Supply Ability: | 100000pcs |
| Payment Type: | T/T |
| Incoterm: | FCA HONGKONG |
| Certificate: | ISO9001 |
| Transportation: | Ocean |
Part number: LCM240128B-3-B
Display Type: 320×240 Dots
Dimension: 160.0L×109.0W×11.0(max)H mm (5.7 INCH)
Viewing area: 122.0×92.0mm
Dot size: 0.33×0.33mm
LCD type: LCD type: STN, Positive(Yellow-Green),Transflective
STN Blue negative,Transmissive
STN Gray Positive,Transflective
Backlight: LED Side or LED Bottom
Backlight color: Yellow-Green,white,blue,red,amber,green
Viewing angle: 6:00 o'clock (optional for 12:00 o'clock)
Driver condition: 1/240 Duty; 1/17 Bias
Driver IC: RA8835 or Equivalent
Operating Temperature: -10 degree TO 60 degree(optional for wide temperature)
Storage Temperature: -20 degree TO 70 degree(optional for wide temperature)
English-Japanese fonts (optional for Russian/European/Cyrillic/Hebrew fonts)
6800 or 8080 serial 8-Bit MPU Interface
