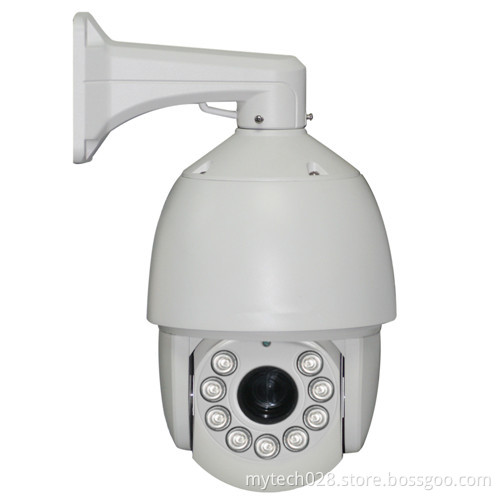

CVI PTZ 720P High speed dome camera with 18X optical zoom
- Payment Type:
- T/T, Western Union, paypal
- Incoterm:
- EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 1000pcs/month |
| Supply Ability: | 1000pcs/ctn |
| Payment Type: | T/T,Western Union,paypal |
| Incoterm: | EXW |
| Certificate: | CE ROHS FCC |
Product Name:
720P HD CVI High speed Dome camera
Order Model:
MY-87C-HB-I(Wall Bracket) MY-87C-HD-I(Ceiling Bracket)
Application:
It can be widely used in wide range environments which required monitoring, e.g. river, forest, highroad, railway,
airport, port, oil field, sentry, piazza, park, scenic zone, street, station, venue, parcel surrounding, etc.
Features:
● HD-CVI 1.3MP 1/3"Ex-view Cmos,18X Optical zoom;
●Precision motor-driven,keen responsive,smoothly operation,the precision deviation less than 0.1 degree,
● Support lightning protection, anti-surge, anti-surge function;
● IP66 ;
●Coax cable control,500m transmission distance
● OSD English Menu
PTZ Function :
● 9 PCS high-power infrared light, turn divided into two groups , no flashlight effect , IR distance 120-150m.
● 360°endless pan range and 0°- 90°tilt range, support auto-flip, non-surveillance blind area
● Pan control speed 0.6°~200°/s, tilt control speed 0.8°~75°/s
● Pan preset speed 200°/s, tilt preset speed 75°/s
● Support 220 preset 8 patrols, each patrol can contain up to 32 presets ,4 patterns, can totally record up to 10 minus.2 point Line scan zone limit
●Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiples
● Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity(contain the idling condition after the power supply has been turn on
|
Parameter/Model |
MY-87C-HB-I(wall mounted), MY-87C-HD-I(ceiling mounted) |
||
|
Module |
Image Sensor |
1/3"Ex-view 1.3 Mega Pixel CMOS |
|
|
Effective pixels |
1280X720 |
||
|
illumination |
Color: 0.1Lux, B/W: 0.001Lux |
||
|
Image |
Pan/Tilt/Pan+Tilt/Off |
||
|
exposure |
Manual/Auto |
||
|
S/N |
≥52dB |
||
|
Back-light compensation |
On/off |
||
|
D-WDR |
Support |
||
|
Zone scanning |
support |
||
|
Shutter Speed |
1/30-1/30,000s |
||
|
Scan System |
Scan |
||
|
Internal |
Internal |
||
|
Day/Night |
Support IR-CUT Color turn Black |
||
|
Focus |
Manual/Auto/Auto Focus |
||
|
Lens |
Built-in |
||
|
Optical zoom |
18X optical zoom,f=5-90mm |
||
|
Min. working distance |
100mm~1000mm |
||
|
Angle of view |
H:48°-2.8° |
||
|
frost less |
Support |
||
|
camera |
OSD Menu |
English |
|
|
IR Distance |
120-150M |
||
|
IR Angle |
Following zoom module 3 groups adjust |
||
|
Pan speed |
360° endless,0.6°-200°/s |
||
|
Tilt speed |
0.8°-75° |
||
|
Tilt range |
0°-90°,auto flip180° |
||
|
Manual Speed |
High,Middle,Low speed adjustable |
||
|
Proportional Zoom |
Support |
||
|
Preset |
220 |
||
|
Patrol |
8,each patrol can contain up to 32 presets |
||
|
Pattern scan |
4, each group can recording 100 action |
||
|
2 point Line scan |
support |
||
|
Watch Position |
Support,Preset Patrol,t,Scan,point scan Auto - Pan |
||
|
Limit Zone |
Support |
||
|
Video Output |
HDCVI,PAl/NTSC,BNC Cable |
||
|
others |
Power supply/Control |
DC 12V 4A,RS485 |
|
|
Power consumption |
Day: 10W ; Night: Max 30W(Without heater) |
||
|
Working Temperature/Humidity |
-20℃-60℃,≤90%RH(frost less) |
||
|
Protection Grade |
TVS3000V lightning protection, surge protection and voltage transient protection, weather proof (for outdoor): IP66 |
||
|
Package dimension(mm) |
300*300*470mm |
||
|
Weight(Kg) |
5.5kg |
||
