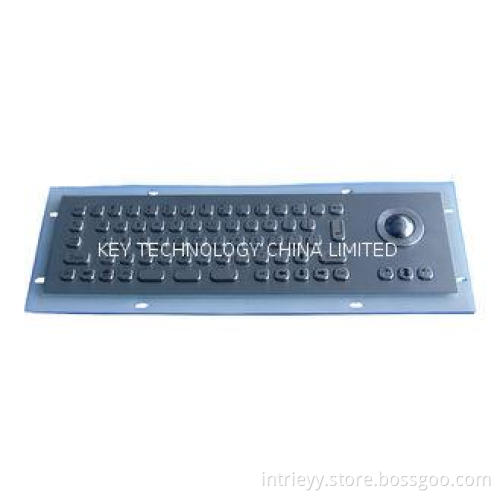

Panel Mount 68keys Industrial Mini Keyboard With Mechanical Trackball
Special Features:
1. MINI 68Keys Compact Format IP65 static Vandal Proof Stainless Steel industrial Keyboard
2. Industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm)
3. Rear panel mounting solution
4. 25.0mm trackball, 2 kinds trackball module optional
5. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
6. CE,RoHS,FCC certified,IP65 test report.
7. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling
8. Optional trackball modules:
----IP68 static mecanical trackball module with 400DPI,
----IP68dynamic optical trackball module with 800 DPI,
Pls.see below table:
Product Classifications and Descriptions | IP Rated TB | ||
K-TEK-A293-MTB | Keyboard; | PS/2;USB | IP65 Static |
K-TEK-A293-OTB | Keyboard; | PS/2;USB |
|
Applications:
This Keyboard is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
Specifications:
MECHANICAL DATA | |
Key | 70keys, super quality SUS304 brushed stainless steel |
Key top style | Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available |
Key Size | 11.0mm x 10.0mm for normal keys, |
Key travel | 2.0mm |
Tracker ball | 25.0mm (1.0’) diameter, |
Switch life | more than 10 million of operations |
Actuation Force | 0.5N +/-0.1N for key 11.0mm x 10.0mm (pressure point) |
Front Plate | Super quality brushed stainless steel1.5mm thickness super |
Back Plate | 3.0mm thickness brushed & oxidized aluminum |
Actuator/keys materials | stainless steel |
G.W. | 1.20KGs |
Dimensions | 293.0mm x 87.0mm (front panel), 317.0mm x 111.0mm (back panel) |
ELECTRICAL DATA | |
Supply Voltage | +5V DC +/-5% |
Current Rating | appr. 30mA |
| It is compliance with the council IEC 61000-4-2:2008; |
EMI: | EN 55022: 2010 |
EMS: | EN 55024:2010 |
Lifespan | > 5 years |
Switch Contact Material: | Carbon-on-Gold key switch technology PCB. |
If needed, numeric keypad is available to be with encryption electronics controller | |
Interface: | Interface: PS2, USB available, RS232 for EPP |
OS: | All windows, Linux, Unix, Mac OSX |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20oC to +60oC |
Storage temperature | -30oC to +70oC |
Operating RH | 30-90% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at + 40oC | 21 days, IEC 60512-6 |
Dry heat test at + 85oC | 10 days, IEC 60512-6 |
RELIABILITY | |
Certification | RoHS Compliant, CE and FCC, IP65, ESD |
Protection Level | IP65(front panel) |
Vandal resistant | IK09 |
Key Lifespan | >10 million actuations |
MTBF | >50000H |
MTTR | <30min |
