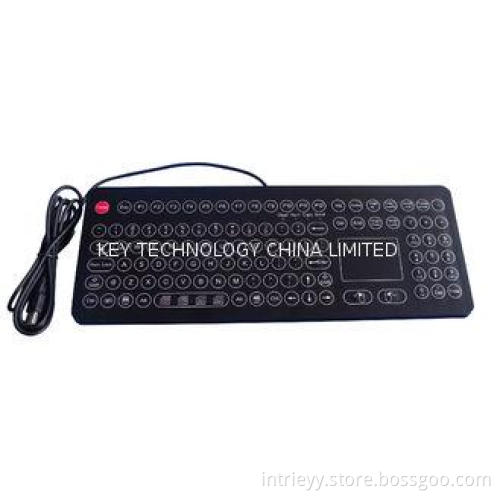

With Touchpad Desk Top Industrial Membrane Keyboard with FN keys
Special Features:
1. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
2. This stylish, rugged medical keyboard is ideal for any application requiring a rugged enclosure and low profile.
3. 108 keys IP68 dynamic scratch proof industrial military medical membrane keyboard with full keyboard functionalities.
4. Durable and anti-microbial keyboard surface
5.mountable movable desk top version with robust polycarbonate case.
6. PS/2, USB connection cables that plug directly into computer like keyboard operations.
7. 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology
8. Ruggedized and backed with 3.0mm alumium plate
9. Movable stand alone desk top version with sealed aluminum metal housing with sand blasting & oxygenation surface treatment.
Applications:
This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings.
Its numeric pad allows for easy data entry.
A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
C: MILITARY: Army, Navy, Air force
D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty
manufacturing environments, warehouses etc
E: OTHER INDUSTRIES
Specifications:
|
MECHANICAL DATA |
|
|
Key |
108 |
|
Key switch Technology |
metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys |
|
Actuation Force: |
1.0N for key 13.0mm x 13.0mm (press point) |
|
Key travel |
0.45mm |
|
Key switch Lifetime |
3 mil. operations |
|
Protection Level |
IP68 |
|
Mounting Type |
Top panel mounting or Desk Top. |
|
Operating Temperature |
-20 °C to +50 °C |
|
Colors |
4 (Blue, White, Grey, Black) |
|
G.W. |
1.40KGs |
|
Key Dimensions |
|
|
Dimensions |
396.0mm x 150.0mm x 27.0mm |
|
TOUCHPAD |
|
|
Touchpad cover |
Composite |
|
Method |
capacitive |
|
Resolution |
40 counts / mm |
|
More than Lifetime 3 million strokes |
|
|
Mutual Capacitance sensing |
|
|
X/Y position |
40 counts/mm |
|
X/Y position reporting |
Relative |
|
Output (self-detectable depending on cable) |
PS2 or USB |
|
Tracking speed |
Maximum 1,016 m/sec |
|
Power supply voltage |
5 V DC ±0.25V |
|
Current rating (active mode) |
17 mA |
|
ELECTRICAL DATA |
|
|
Supply Voltage |
+5V DC +/-5% |
|
Current Rating |
appr. 120mA |
|
EMC Standard: |
It is compliance with the council IEC 61000-4-2:2008; |
|
EMI: |
EN 55022: 2010 |
|
EMS: |
EN 55024:2010 |
|
Lifespan |
> 3 years |
|
Interface: |
PS2, USB available. |
|
OS: |
All windows, Linux, Unix, Mac OSX |
|
RELIABILITY |
|
|
Certification |
RoHS Compliant, CE and FCC,IP68, ESD |
|
Protection Level |
IP68 |
|
Key Lifespan |
>3 million actuations |
|
Touchpad lifespan |
> 10 million of times |
|
MTBF |
>50000H |
|
MTTR |
<30min |
