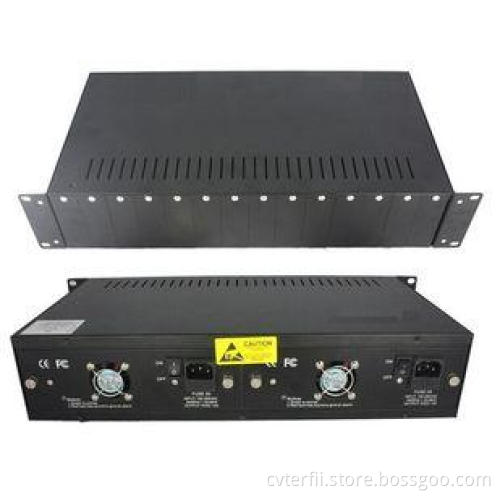

14 Slot Rackmount Chassis Fiber Optic Converter With 4 Fans
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
14 Slot Rackmount Chassis Fiber Optic Converter With 4 Fans 2 Power Supply
Advantage:
14-Slot Rackmount Chassis with 4 Fans for cooling device to work more stable.
14-sLOT Rackmount Chassis with 2 Power Supply, AC + AC , DC+ DC, or AC+ DC for optional
14-Slot Rackmount Chasis with 4 Package Inner Box to packle into 1 Carton Box to keep safety
transport .
- The configuration of active/standby power supply ensures uninterruptible operation of the system.
- Provide two power supplies (AC 220V, and DC -48V), enabling the system can work under many operating environments;
- Supporting simultaneous operation of several module type (module type) media converters at different rates, which greatly improves system adaptability;
- Each card supports hot swapping;
Technical Indexes Description:
|
Parameter |
Specifications |
|
|
Number of slots |
16 |
14 |
|
Structure |
2U rack |
2U rack |
|
Power input
|
AC Voltage: AC 85~265V; frequency: 50/60 Hz |
AC Voltage: AC 85~265V; frequency: 50/60 Hz |
|
|
DC voltage: DC-36~72V |
DC voltage: DC-36~72V |
|
Power output |
DC5V 16A |
DC5V 16A |
|
Ripple |
<20mv |
<20mv |
|
Power configuration |
Single power supply; or Dual power supply for warm backup mode |
Single power supply; or Dual power supply for warm backup mode |
|
LED indication |
POWER (power supply) |
POWER (power supply) |
|
Max. power consumption |
80W |
80W |
|
Operating temperature |
-10~55ìC |
10~55ìC |
|
Operating humidity |
5%~90% |
5%~90% |
|
Maintaining temperature |
-40~70ìC |
-40~70ìC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
5% ~ 90% non-condensing |
|
Dimensions of rack |
90mm (H) * 485mm (W) * 245mm (D) |
88mm (H) * 442mm (W) * 350mm (D) |
Order information:
|
Model No |
Description |
|
FR-R 14A |
14-slot dual-power supplies rack (220v) |
|
FR-R14D |
14-slot dual-power supplies rack (-48v) |
|
FR-R 16A |
16-slot dual-power supplies rack (220v) |
|
FR-R16D |
16-slot dual-power supplies rack (-48V) |
