12V / 24V DC 2900rpm Ventilation Cross Flow Fans 30mm*190mm
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shen Zhen , China |
|---|

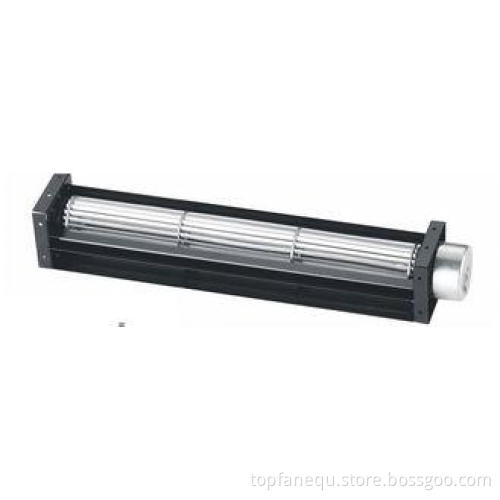

12V / 24V 2900rpm Ventilation Cross Flow Fans DC Cross Flow Fan 30 * 190mm
30 * 190mm DC cross flow fan , low noise and long life expectancy , are widely used in network communications , as well as industrial production equipment , medical equipment , home appliances , etc .
Description :
- 30 * 190mm DC FAN , used for cooling and ventilation .
- Frame : Aluminum ADC-12 , Painted Black
- Blade : PBT + 15%GF
- Stator & Rotor : Silicon steel
- Magnet Wires : Copper 2 UEW
- Bobbin : PA-66 UL 94 V-0
- Bearing Type : Sleeve Bearing
Specification :
|
Model |
LRD30190A12 |
|
Rotor Dimension |
30 * 190mm |
|
Rated Voltage |
DC 12V |
|
Voltage Range |
AC 7V - 13.8V |
|
Rated Current |
0 . 20 ± 10%A |
|
Power Consumption |
2 . 4w ± 10%W |
|
Speed |
2900 ± 10%RPM |
|
Max . Air flow |
35 ± 10%CFM |
|
Max . Static Pressure |
1 . 8 mmAq |
|
Noise Level |
35 dB A |
|
Weight |
230g |
|
Environmental Specification |
Operating Temperature : - 10℃ ~ 55℃ Operating Humidity : - 20% ~ 80%RH |
Notes : If you want to know more information about cross flow fan ( Dc or Ac ), please contact with Vivian Dai , thank you very much .
Shenzhen Topfan Technology Development Co . , Ltd is a high - tech enterprises of professional manufacture and researcher on dc brushless fans and ac fans . Is the professional cooling fan manufacturer in the field with the most professional and largest scale intergrating research and development , manufacturing and sales . The products , including brushless fans , cross flow fans, blower fans , centrifugal fans , dc brushless motor , shaded pole , AC and EC fans are widely used in the computer information technology , network communications , as well as industrial production equipment , medical equipment , home appliances , etc .
