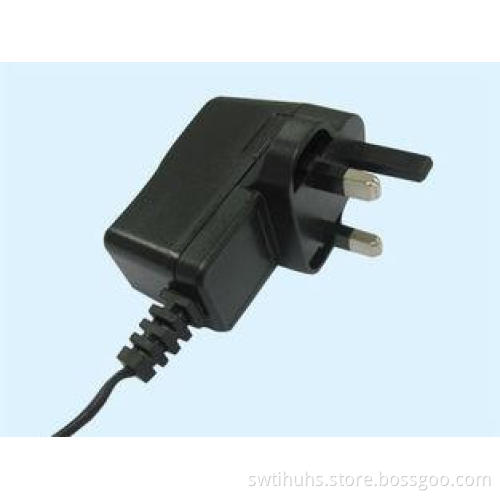

9V 1.2A AC To DC Power Adapter 12W Adapters For Digital Products
Feature:
. Fully AC input
. Small Size , High Efficiency
. No load consumption < 0.3W
. With Over Current Protection, Over Voltage Protection
. Warranties: 2 years
. Fully Encloure By Plastic Case
Description:
Electronics Specification: | |
Input Voltage Range : | 90~264Vac |
AC current : | 0.3A |
Frequency : | 50/60Hz |
Inrush Current : | 30A/230Vac |
Leakage Current : | 0.25mA/240Vac |
Normal Output Voltage : | 9.0 Vdc |
| Output Voltage Range : | 8.55Vdc to 9.45 Vdc |
| Maximum Output Current : | 1.2A |
Ripple and Noise : | < 90 mVp - p |
Line regulation : | ±1% |
Load regulation : | ±5% |
Efficiency : | >75% |
Over current protection : | Hiccup mode, Auto recovery |
Over voltage protection : | Power shutdown, Auto recover |
Environment : | |
Working Temp. : | 0~40℃ |
Working Humidity : | 20%~90% RH non-condensing |
Storage Temp. & Humidity : | -20℃~85℃, 10%~95% RH |
Reliability : | |
Hi-Pot Testing Voltage : | I/P to O/P : 3.0 (60Sec.) KVac |
Safety Standard : | EN60950 |
EMI Standard : | EN55022B |
Safety Approval : | |
Certificate | UL, CE, FCC, C-TICK,CB |
Mechanical Characteristics : | |
Size : | 65mm * 20mm * 40mm (L * W * H) |
AC connector : | US type |
DC Cable : | 1.8M |
DC connector : | 5.5*2.1*12mm, other type connector avaible |
Applications:
widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
