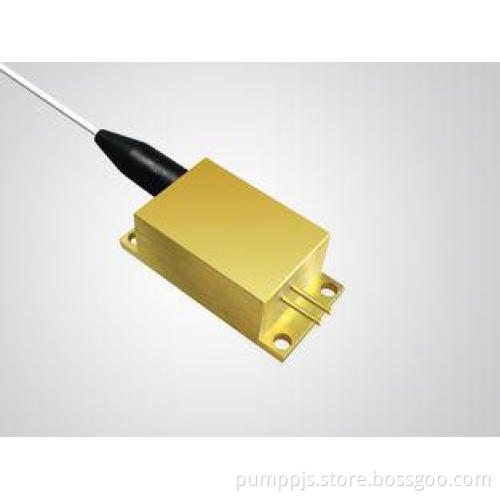

976nm 9W Narrow Linewidth High Power Laser Diode for Laser Pumping K976AA2RN-9.00W
Features:
- Narrow Bandwidth △λ<0.7nm
- Output power 9W
- Wavelength 976nm
- 105µm fiber core diameter
- 0.22N.A.
- 1030nm-1200nm feedback protection
Application
- Laser pumping
|
Specifications(25℃) |
Symbol |
Unit |
K976AA2RN-9.00W |
|
|
Optical Data |
CW-Output Power |
P0 |
W |
9 |
|
Center Wavelength |
λc |
nm |
976 |
|
|
Tolerance of λ |
- |
nm |
±0.5 |
|
|
Spectral Width (FWHM) |
△λ |
nm |
<0.5 |
|
|
Temperature Drift of λ |
△λ/△T |
nm/℃ |
~0.02 |
|
|
Current Drift of l(1) |
△l/△Iop |
nm/A |
~0.05 |
|
|
Fiber Data(2) |
Fiber Core Diameter |
Wc |
µm |
105 |
|
Numerical Aperture |
N.A. |
- |
0.22 |
|
|
Fiber Connector |
- |
- |
SMA-905 |
|
|
Electrical Data |
Operating Current |
Iop |
A |
12 |
|
Threshold Current |
Ith |
A |
0.6 |
|
|
Conversion Efficiency |
η |
% |
43 |
|
|
Slope Efficiency |
ηD |
W/A |
0.82 |
|
|
Operating Voltage |
Vop |
V |
1.8 |
|
|
Reverse Voltage |
Vre |
V |
2 |
|
|
Feedback Isolation Data |
WavelengthRange |
λ |
nm |
1030-1200 |
|
Isolation |
- |
dB |
>30 |
|
|
Others |
Operating Temperature |
Top |
℃ |
30±5 |
|
Storage Temperature |
Tst |
℃ |
-20~+80 |
|
|
Expected Lifetime |
MTTF |
h |
>100, 000 |
|
|
Dimensions |
- |
mm |
26.0 x 12.7 x 12.5 |
|
|
Lead Soldering Temperature |
Tis |
℃ |
260(10 sec.) |
|
(1) Data measured under operation output at 9W.
(2) Other fibers available upon request.
