Pump Laser Diode 793nm 30W For 2m Fiber Laser Pumping
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

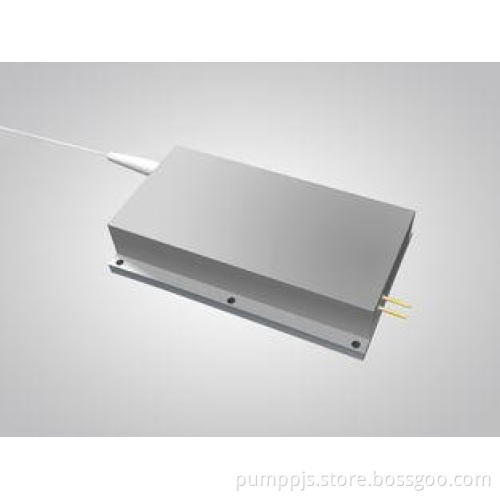

High Power Pump Laser Diode Fiber Coupled 793nm 30W For Fiber Laser Pumping
Features:
30W output power
105µm fiber core diameter
0.22N.A.
793nm wavelength
1900nm-2100nm feedback protection
Applications:
Tm doped fiber laser pumping
Solide-state laser pumping
|
Specifications(25℃) |
Symbol |
Unit |
K793DA7RN-30.00W |
|
|
Optical Data |
CW-Output Power |
Po |
W |
30 |
|
Center Wavelength |
λc |
nm |
793 |
|
|
Tolerance of l |
- |
nm |
±3 |
|
|
Spectral Width (FWHM) |
△λ |
nm |
<5 |
|
|
Fiber Data (1) |
Fiber Core Diameter |
Wc |
µm |
105 |
|
Numerical Aperture |
N.A. |
- |
0.22 |
|
|
Fiber Connector |
- |
- |
- |
|
|
Electrical Data |
Operating Current |
Iop |
A |
3.5 |
|
Threshold Current |
Ith |
A |
0.4 |
|
|
Slope Efficiency |
ηD |
W/A |
15.5 |
|
|
Operating Voltage |
Vop |
V |
32.0 |
|
|
Reverse Voltage |
Vre |
V |
- |
|
|
Others |
Operating Temperature |
Top |
℃ |
10~40 |
|
Storage Temperature |
Tst |
℃ |
-20~+70 |
|
|
Expected Lifetime |
MTTF |
h |
>10,000 |
|
|
Dimensions (fiber and connector not included) |
- |
mm |
108.0 x 65.0 x 22.0 | |
|
Lead Soldering Temperature |
Tis |
℃ |
260(10 sec.) |
|
Other fibers available upon request.
