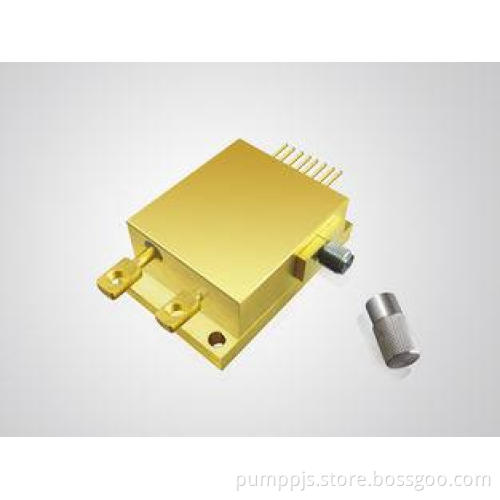

808nm 30W Pump Laser Diode 400m 0.22NA For Solid-state Lase

Specifications(25℃)

Symbol

Unit

K808DANCA-15.00W

K808DANCA-30.00W

Optical Data

CW-Output Power

P_o

W

15

30

Center Wavelength

λ_c

nm

808

Tolerance of λ

-

nm

±3,±10

Spectral Width (FWHM)

△λ

nm

<3

Temperature Drift of λ

-

nm/℃

~0.3

Connector Data

Fiber Core Diameter

W_c

µm

400

Fiber Numerical Aperture

N.A.

-

0.22

Fiber Connector

-

-

SMA-905

Electrical Data

Operating Current

I_op

A

10

Threshold Current

I_th

A

1.4

Conversion Efficiency

η

%

44

Slope Efficiency

η_D

W/A

1.9

3.8

Operating Voltage

V_op

V

3.8

7.8

Reverse Voltage

V_re

V

4

8

PD Data

Current

I_mo

mA

0.2-2.0

Aiming Beam Data

Output Power

P_a

mW

>2

Wavelength

l_a

nm

650±10

Voltage

V_a

V

2.2⁽¹⁾

Current

I_a

mA

<30

TEC

Max current

I_t

A

6.0

Max voltage

V_t

V

9.8

Thermistor⁽²⁾

Thermistor

R_t

(K Ω)/β(25℃)

10±5%/3477

Others

Operating Temperature

T_op

℃

10~30

Storage Temperature

T_st

℃

-20~+70

Expected Lifetime

MTTF

h

>10,000

Dimensions
(fiber and connector not included)

-

mm

52.0×35.0×20.1(Without TEC)

52.0×35.0×20.1
(Without TEC)-

52.0×35.0×22.1(WithTEC)

Lead Soldering Temperature

T_is

℃

260(10 sec.)
