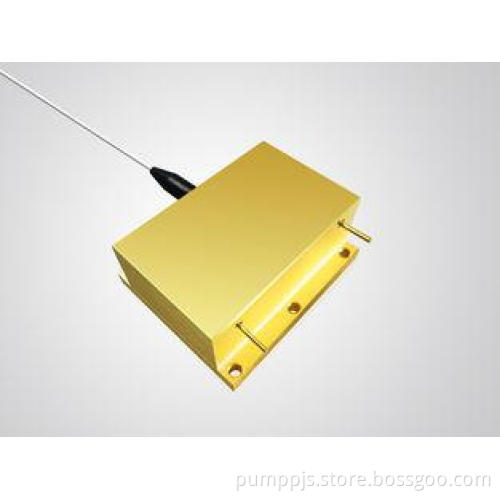

200µm / 635nm / 2.5W High Power Fiber Coupled Red Medical Diode Laser Module K635DG3FN-2.50W
Features:
- Wavelength 635nm
- Output power 2.5W
- 200µm fiber corediameter
- 0.22N.A.
- Photo Diode (optional)
- TEC (optional)
Applications:
- Medical use
- Laser display
|
Specifications(15℃) |
Symbol |
Unit |
K635DG3FN-2.50W |
|
|
Optical Data |
CW-Output Power |
P0 |
W |
2.5 |
|
Center Wavelength |
λc |
nm |
635 |
|
|
Tolerance of λ |
- |
nm |
±3 |
|
|
Spectral Width (FWHM) |
△λ |
nm |
<3 |
|
|
Fiber Data (1) |
Fiber Core Diameter |
Wc |
µm |
200 |
|
Numerical Aperture |
N.A. |
- |
0.22 |
|
|
Fiber Connector |
- |
- |
SMA-905 |
|
|
Electrical Data |
Operating Current |
Iop |
A |
1.2 |
|
Threshold Current |
Ith |
A |
0.6 |
|
|
Conversion Efficiency |
η |
% |
15 |
|
|
Slope Efficiency |
ηD |
W/A |
4.2 |
|
|
Operating Voltage |
Vop |
V |
13.8 |
|
|
Reverse Voltage |
Vre |
V |
12.0 |
|
|
Other |
Operating Temperature |
Top |
℃ |
10~30 |
|
Storage Temperature |
Tst |
℃ |
-20~+80 |
|
|
Expected Lifetime |
MTTF |
h |
>5000 |
|
|
Lead Soldering Temperature |
Tis |
℃ |
260(10 sec.) |
|
(1) Other fibers available upon request..
