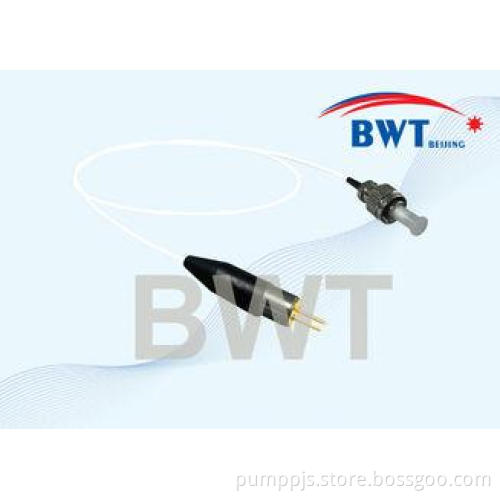

0.13NA Medical Diode Laser 520nm 2mW Single Mode For Aiming

0.13NA Medical Diode Laser 520nm 2mW Single Mode For Aiming Beam

Features:

2mW output power

4µm fiber core diameter

0.13N.A.

Applications:

• Aiming beam

• Specifications(25℃)		Symbol	Unit	K520F03SN-0.002W
  Optical Data	CW-Output Power	Po	mW	2
  	Center Wavelength	lc	nm	520
  	Tolerance of l	-	nm	±10
  	Spectral Width (FWHM)	△l	nm	<2
  	Temperature Drift of l	-	nm/℃	~0.2
  Fiber Data (1)	Fiber core Diameter	Wc	µm	4
  	Numerical Aperture	N.A.	-	0.13
  	Fiber Connector	-	-	SMA-905
  Electrical Data	Operating Current	Iop	mA	<80
  	Threshold Current	Ith	mA	50
  	Slope Efficiency	ηD	mW/mA	0.1
  	Operating Voltage	Vop	V	7
  	Reverse Voltage	Vre	V	2
  Others	Operating Temperature	Top	℃	10~40
  	Storage Temperature	Tst	℃	-20~+70
  	Expected Lifetime	MTTF	h	>10,000
  	Dimensions (fiber and connector not included)	-	mm	Φ7.4×34.0
  	Lead Soldering Temperature	Tis	℃	260(10 sec.)
