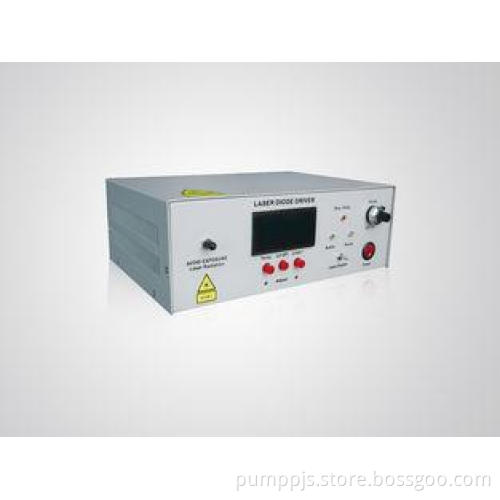

808nm / 915nm /980nm Air cooling Diode Laser System DS3-11312-XXX-LD
BWT manufactures diode laser system wavelengths ranging from 450nm to 1550nm and the output can be up to 300 watt. The system can add several functions according customization. Compact and operate-friendly designs make it very easy to use. To meet customer’s specific demanding and provide high quality products and laser system solutions are our eternal pursuit.
Features:
- Up to 300W output power
- Fiber delivery
- Air cooling
- Red aiming beam (optional)
- Temperature control
- Compact design
|
Specifications |
DS3-11312-xxx-K635F09FN-0.40W |
DS3-11312-xxx-LD No. |
||
|
Optical Data |
CW-Output Power |
400mW |
2W, 4W, 8W, 10W, 15W |
20W, 30W, 50W |
|
Center Wavelength |
635nm |
808nm, 915nm, 980nm |
||
|
Tolerance of λ |
±10nm |
|||
|
Spectral Width (FWHM) |
<3nm |
|||
|
Power Stability |
±5% |
|||
|
Fiber Data |
Fiber Core Diameter |
105, 200µm |
105, 200, 300, 400µm |
105, 200, 300, 400µm |
|
Numerical Aperture |
0.22 |
|||
|
Fiber Connector |
SMA-905 |
|||
|
LD Controller Data |
Control Range |
15~30℃ |
||
|
Accuracy |
±1℃ |
|||
|
Alarm Setting |
15~30℃ |
|||
|
Operation Mode |
CW/QCW |
|||
|
Operation Current |
<1A |
<10A |
<15A |
|
|
Operation Requirements |
Operation Temperature |
0~40℃ |
||
|
Cooling Requirement |
Internal fan. At least 10 cm clearance, both sides |
|||
|
Operation Humidity |
5-80% |
|||
|
Storage Temperature |
-20-55℃ |
|||
|
Power Supply Requirements |
Input Power |
220 V AC, 50 ~ 60 Hz or AC 90~260 V, 50 ~ 60 Hz |
||
|
Power Loss |
<30W |
<100W |
<500W |
|
|
Others |
Dimensions (L×W×H) |
296×254×115mm |
296×254×115mm |
420×337×174mm |
|
Weight |
<10Kg |
<10Kg |
<18Kg |
|
