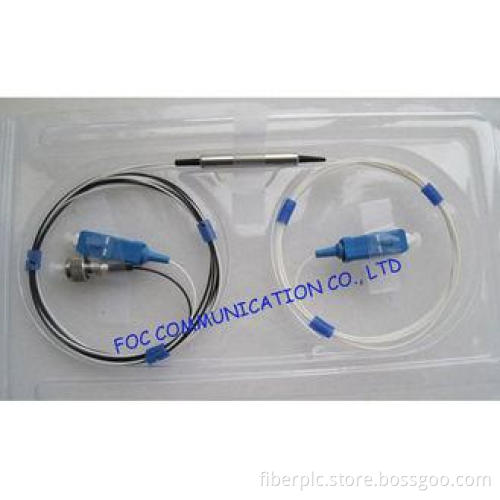

3 Port Wavelength Division Multiplexer 980 / 1550nm or 1480 / 1550nm for WDM Systems
Wavelength Division Multiplexer (WDM) is the device which uses multiple optical maser to transmit multi beam of different wavelengths of laser technology through a single fiber. Each signal is transmitted in its unique channel after the data (text, voice, video and so on) modulated. WDM can increase the existing fiber infrastructure for phone companies and other operators.
DWDM (dense wavelength division multiplexing) system can support more than 150 different wavelengths of light beam transmitted simultaneously, and each beam peaked at 10Gb/s data rates. This system provides data transmission over 1Tb/s rate but the cable is smaller than a human hair.
Wavelength division multiplexing technology as a system concept, there are 3 modes, wavelength division multiplexing at 1310 nm and 1550 nm wavelength, CWDM (Coarse Wavelength Division Multiplexing) and DWDM (Dense Wavelength Division Multiplexing).
Features
Low insertion loss
Wide pass band
High channel isolation
High stability and reliability
Epoxy free on optical path
Applications
Line monitoring
WDM network
Telecommunication
Cellular Application
Fiber optical amplifier
Access Network
Specifications
|
Pass Channel Wavelength Range(nm) |
1530~1565 1525~1600 |
|
|
Reflect Channel Wavelength(nm) |
1450~1490 965~1000 |
|
|
Insertion loss(dB) |
Reflect channel |
≤0.5 ≤0.7 |
|
Pass channel |
≤0.6 ≤0.9 |
|
|
Insertion loss variation(dB) |
＜0.3 |
|
|
Isolation(dB) |
Reflect Channel |
＞15 ＞15 |
|
Pass Channel |
＞25 ＞30 |
|
|
Insertion loss temperature sensitivity(dB/℃) |
＜0.005 |
|
|
Polarization dependent loss(dB) |
＜0.1 |
|
|
Polarization mode dispersion(ps) |
＜0.1 |
|
|
Directivity(dB) |
＞50 |
|
|
Return Loss(dB) |
＞50 |
|
|
Maximum power handling(mW) |
500 |
|
|
Operating Temperature(℃) |
-20~+70 |
|
|
Storage temperature(℃) |
-40~+85 |
|
|
Package dimension(mm) |
￠5.5*L34(L38 for 900um loose tube) |
|
Note: All the data above does not include connectors.
Ordering Information
|
CWDM |
|
|
|
|
|
|
Channel Spacing |
Fiber Type |
Fiber Length |
Connector |
|
|
1550 pass/1480 reflect 1550 pass/980 reflect
|
1=Bare Fiber 2=900um Loose tube |
1=1m 2=2m 3=Customized |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC |
We can produce WDM including the following:
CWDM device, CWDM module, 1310/1550 Filter WDM, 1310/1490/1550nm Filter WDM, 850/1310nm Filter WDM, 980/1550nm Filter WDM
DWDM device, 100G DWDM Module, 200G DWDM Module
OADM Module (Add/Drop)
Thermal AWG Module, Athermal AWG Module
Tag: WDM, CWDM, DWDM
