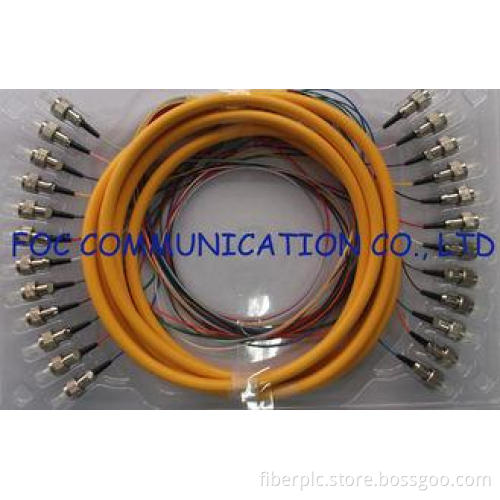

0.9mm Bundle Fan Out Fiber Optic Patch Cord 12Core for Telecom and Datacom
FOC COMMUNICATION CO., LTD is the professional manufacture of fiber optic components. We produce the whole series fiber optic patc cord, including breakout cable patch cord, ribbon fan out patch cord, indoor armored patch cord, outdoor armored patch cord, waterproof patch cord, OM3 and OM4 patch cord.
Fiber Optic Patch Cord is one piece of cable with connectors in both sides. If only one side assemble the connector, it is called fiber optic pigtail.
Cores: simplex, duplex, multi core patch cords.
Cable Jacket: PVC, LSZH, OFNR, OFNP
Cable outer diameter: 0.9mm, 2.0mm, 3.0mm
Fiber Type: SM(9/125um), OM1(62.5/125um), OM2(50/125um), OM3, OM4
Connector Type: FC, SC, ST, LC, MU, MTRJ, MPO, E2000, SMA, FDDI, D4, DIN
Endface type: UPC, APC
Descriptions
Bundle fan out patch cable is protected and separated fiber ribbon (general 12 cores) with connector on the end to realize the separate fiber connection with the ODF. The quality and performance is reliable and stable. It is an efficient and economical solution rather than one site termination or splicing. Lay the cable and patch it soon, simply to do it.
Applications
Connection of optical transmission equipments
Telecom and Datacom applications
Computer networks
High speed and volume data transmission network
CATV, LAN
SPECIFICATIONS
Connector | FC, SC, ST, LC | |
UPC | APC | |
Insertion Loss | ≤0.3dB | |
Return Loss | ≥50dB | ≥60dB |
Cable Outer Diameter(mm) | ￠0.9, ￠2.0, ￠3.0 | |
Durability | ≤0.3dB(1000 matings) | |
Interchangeability | ≤0.2dB | |
Operating Temperature | -40℃~+80℃ | |
Technical Test Data
Test item | Test condition |
Wet-resistance | Temperature:85ºC/relative humidity 85%/14days/insertion loss≤0.1dB |
Temperature change | Temperature: -40ºC~+75ºC/relative humidity 10%-80% /42 repetitions/14days/ insertion loss≤0.1dB |
Water resistance | Temperature: 43ºC, /PH5.5,/ 7days /insertion loss≤0.1dB |
Vibrancy | Swing 1.52mm/frequency 10Hz~55Hz,/ X,Y,Z three directions:2 hours /insertion loss≤0.1dB |
Load bend | 0.454kg load/100circles insertion loss≤0.1dB |
Load torsion | 0.454kg load/10 circles insertion loss ≤0.1dB |
Tensility resistance | 0.23kg pull (nakedness fiber),1.0kg(with shell ) insertion≤0.1dB |
Strike | High 1.8m,three directions ,8 in each direction/insertion loss≤0.1dB |
Reference standard | Bellcore TA-NWT-001209 insertion loss≤0.1dB |
Rema Remark: The load bend and load torsion not suitable for 0.9mm patch cord or pigtail.
Order Ordering information
Interface | Connector | Length | OD | Color of jacket | Jacket | Fiber Type | Cores |
P-PC | FC-FC | 1M | 0.9mm | B-Black | P-PVC | SM | Simplex |
U-UPC | SC-SC | 3M | 1.6mm | Y-Yellow | L-LSZH | MM 50/125um | Duplex |
A-APC | LC-LC | 5M | 1.8mm | W-White | OFNR | MM 62.5/125um | 4cores |
| ST-ST | 10M | 2.0mm | Customized | OFNP | MM OM3 | 6cores |
| MU-MU | Customized | 3.0mm |
| Customized | MM OM4 | 8cores |
| MTRJ-MTRJ |
| Customized |
|
|
| 12cores |
| E2000-E2000 |
|
|
|
|
| 24cores |
| DIN |
|
|
|
|
| Customized |
| Customized |
|
|
|
|
|
|
