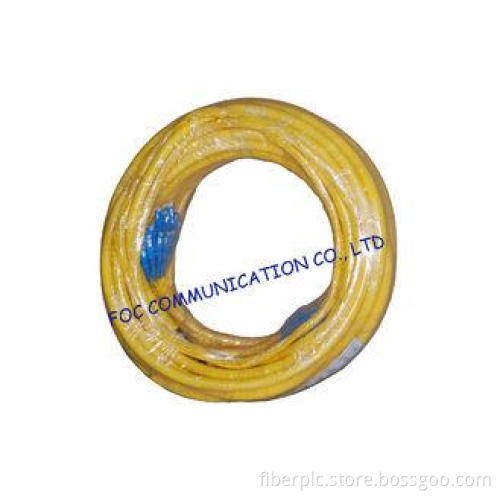

Breakout Fiber Optic Patch Cord SC / UPC 24Core UV Resistant for Fiber to The Home
FOC COMMUNICATION CO., LTD is the professional manufacture of fiber optic components. We produce the whole series fiber optic patc cord, including breakout cable patch cord, ribbon fan out patch cord, indoor armored patch cord, outdoor armored patch cord, waterproof patch cord, OM3 and OM4 patch cord.
Fiber Optic Patch Cord is one piece of cable with connectors in both sides. If only one side assemble the connector, it is called fiber optic pigtail.
Cores: simplex, duplex, multi core patch cords.
Cable Jacket: PVC, LSZH, OFNR, OFNP
Cable outer diameter: 0.9mm, 2.0mm, 3.0mm
Fiber Type: SM(9/125um), OM1(62.5/125um), OM2(50/125um), OM3, OM4
Connector Type: FC, SC, ST, LC, MU, MTRJ, MPO, E2000, SMA, FDDI, D4, DIN
Endface type: UPC, APC
Descriptions
Breakout fiber optic cable is the cable each simplex with buffer design, independent strength member and sheath to prevent damage from environment and mechanical stress.
Breakout fiber optic patch cord is terminated connectors on this type of breakout cable. The inner diameter is usually 2.0mm or 3.0mm and the connectors can be chosen SC, FC, ST, LC, E2000 and so on.
Applications
Connection of optical transmission equipments
Telecom and Datacom applications
Computer networks
High speed and volume data transmission network
CATV, LAN
SPECIFICATIONS
Connector | FC, SC, ST, LC | |
UPC | APC | |
Insertion Loss | ≤0.3dB | |
Return Loss | ≥50dB | ≥60dB |
Cable Outer Diameter(mm) | ￠0.9, ￠2.0, ￠3.0 | |
Durability | ≤0.3dB(1000 matings) | |
Interchangeability | ≤0.2dB | |
Operating Temperature | -40℃~+80℃ | |
Technical Test Data
Test item | Test condition |
Wet-resistance | Temperature:85ºC/relative humidity 85%/14days/insertion loss≤0.1dB |
Temperature change | Temperature: -40ºC~+75ºC/relative humidity 10%-80% /42 repetitions/14days/ insertion loss≤0.1dB |
Water resistance | Temperature: 43ºC, /PH5.5,/ 7days /insertion loss≤0.1dB |
Vibrancy | Swing 1.52mm/frequency 10Hz~55Hz,/ X,Y,Z three directions:2 hours /insertion loss≤0.1dB |
Load bend | 0.454kg load/100circles insertion loss≤0.1dB |
Load torsion | 0.454kg load/10 circles insertion loss ≤0.1dB |
Tensility resistance | 0.23kg pull (nakedness fiber),1.0kg(with shell ) insertion≤0.1dB |
Strike | High 1.8m,three directions ,8 in each direction/insertion loss≤0.1dB |
Reference standard | Bellcore TA-NWT-001209 insertion loss≤0.1dB |
Rema Remark: The load bend and load torsion not suitable for 0.9mm patch cord or pigtail.
Order Ordering information
Interface | Connector | Length | OD | Color of jacket | Jacket | Fiber Type | Cores |
P-PC | FC-FC | 1M | 0.9mm | B-Black | P-PVC | SM | Simplex |
U-UPC | SC-SC | 3M | 1.6mm | Y-Yellow | L-LSZH | MM 50/125um | Duplex |
A-APC | LC-LC | 5M | 1.8mm | W-White | OFNR | MM 62.5/125um | 4cores |
| ST-ST | 10M | 2.0mm | Customized | OFNP | MM OM3 | 6cores |
| MU-MU | Customized | 3.0mm |
| Customized | MM OM4 | 8cores |
| MTRJ-MTRJ |
| Customized |
|
|
| 12cores |
| E2000-E2000 |
|
|
|
|
| 24cores |
| DIN |
|
|
|
|
| Customized |
| Customized |
|
|
|
|
|
|
