Mechanical Structure Slurry Thickener For Dealing With Slime , Wastewater , Waste Residue
Good Flocculation Efficient Thickener Slurry Thickener
Quick Detail:
1. Good flocculation of solid particles
2. Flexible automatic control system
3. Long operating life
Description:
Produced by introducing American technique
New mechanical structure, strengthening the flocculation of solid particle
Supplying flocculent adding system, the flocculent adding auto-control system and high-efficiency auto-control system
Applications:
It is widely used for dealing with slime, wastewater, waste residue in metallurgy, mine, coal, petrochemical industry, building materials, environmental protection department etc.
Principle:

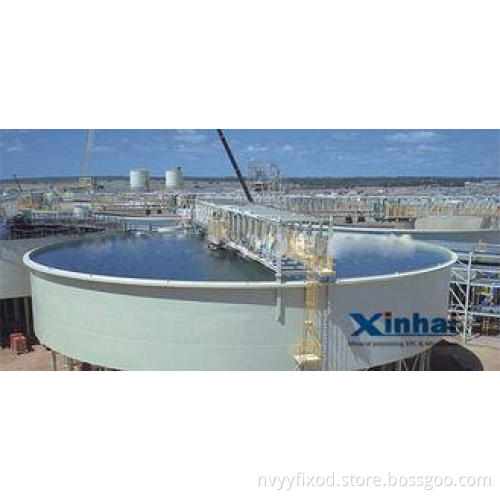

This thickener consists of round thickener and harrow scrapping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.
Specifications :
| Model | D of the tank (mm) |
Depth of the tank (mm) |
Sedimental area (m2) |
capacity (t/d) |
Motor model | Motor power (kw) |
Weight of the tank (kg) |
weight (kg) |
| NZSG-2.5 | 2500 | 1850 | 4.9 | 5-10.8 | Y90L-6 | 1.1 | 1000 | 2225 |
| NZSG-3A | 3000 | 1800 | 7 | 5-23.3 | Y100L-6 | 1.5 | 1664 | 3168 |
| NZSG-3 | 3600 | 10.2 | 5-28.5 | 2097 | 3640 | |||
| NZSG-5 | 5000 | 2956 | 16 | 16-90 | Y90L-4 | 5160 | 8031 | |
| NZSG-6 | 6000 | 28.3 | 98 | 5769 | 9200 | |||
| NZSG-7 | 7000 | 3000 | 38.5 | 140 | Y112M-6 | 2.2 | 8548 | 13361 |
| NZSG-8 | 8000 | 3318 | 50.2 | 185 | Y132S-6 | 3 | 12966 | 19289 |
| NZSG-9 | 9000 | 3376 | 63 | 210 | 15304 | 21960 | ||
| NZSG-12 | 12000 | 3600 | 113 | 370 | 25389 | 34823 | ||
| NZSG-15 | 15000 | 4000 | 176 | 580 | Y132(M2)-6 | 5.5 | 35800 | 58800 |
| NZSG-18 | 18000 | 4400 | 255 | 960 | YCT200-413 | 7.5 | 49694 | 65992 |
| NZSG-20 | 20000 | 4400 | 315 | 1400 | Y160(M2)-8 | 59365 | 81238 |
