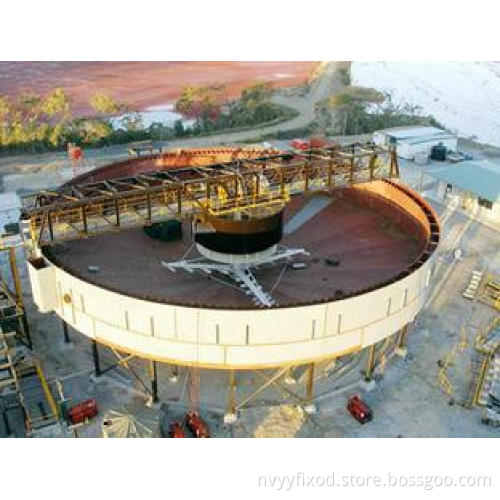

Hydraulic Motor Driving Center Slurry Thickener Automatic Rake Lifting And Dropping
Hydraulic Motor Driving Center Thickener Slurry Thickener
Quick Detail:
A thickener with center hydraulic driving and hydraulic automatic rake lifting
Description:
Simple and convenient installation & maintenance
The simple internal structure is convenient for the layout of hydraulic and electric control system.
Control the speed of rake by regulating oil volume of oil pump, so as to achieve the best state.
Automatic rake lifting and dropping
Applications:
Mainly used for clarification and concentration of coal slurry or pulp
Also used for dewatering of solid-liquid separation in chemical industry, metallurgy industry, etc.
Principle:
Hydraulic motor drive center thickener is mainly composed of driving device, tray, dosing device, feeding pipe, fixed cylinder, shaft, scraper, rake, suspenders, electronic control device, hydraulic station, etc.
Specifications :
| Model | Thickener Tank Diameter m | Tank Depth m | Sedimentation Area m2 | Rake Rotation Time min/r | Rake Lifting Height mm | Capacity t/d | Driving Power kW |
| NZY-6 | 6 | 3.0~3.2 | 28 | 2.5~5.0 | 350 | 50~100 | 3 |
| NZY-9 | 9 | 3.5~3.8 | 63.6 | 3.0~5.0 | 350 | 120~175 | 3 |
| NZY-12 | 12 | 3.5~3.8 | 113 | 4.0~7.0 | 350 | 200~300 | 4 |
| NZY-15 | 15 | 4.0~4.5 | 176 | 5.0~10.0 | 450 | 350~400 | 5.5 |
| NZY-18 | 18 | 4.0~4.5 | 254 | 8.0~12.0 | 450 | 600~800 | 5.5 |
| NZY-20 | 20 | 4.0~4.5 | 314 | 8.0~12.0 | 450 | 800~1000 | 7.5 |
| NZY-24 | 24 | 4.5~5.5 | 450 | 9.0~12.0 | 450 | 1000~1300 | 7.5 |
| NZY-30 | 30 | 4.5~5.5 | 706 | 10.0~14.0 | 450 | 1500~1800 | 11 |
| NZY-38 | 38 | 6.5~8.0 | 1134 | 15.0~22.0 | 600 | 1800~2200 | 15 |
| NZY-40 | 40 | 6.5~8.0 | 1256 | 15.0~22.0 | 600 | 2200~2400 | 15 |
| NZY-45 | 45 | 6.5~8.0 | 1590 | 15.0~22.0 | 600 | 2400~2800 | 15 |
| NZY-53 | 53 | 6.5~8.0 | 2206 | 15.0~22.0 | 600 | 3000~3500 | 15 |
| NZY-60 | 60 | 7.0~8.5 | 2827 | 16.0~50.0 | 600 | 3500~5000 | 18.5 |
| NZY-75 | 75 | 8.0~10.0 | 4418 | 20.0~80.0 | 800 | 7500~10000 | 22 |
| NZY-100 | 100 | 8.0~10.0 | 7853 | 35.0~80.0 | 800 | 10000~15000 |
30 |
