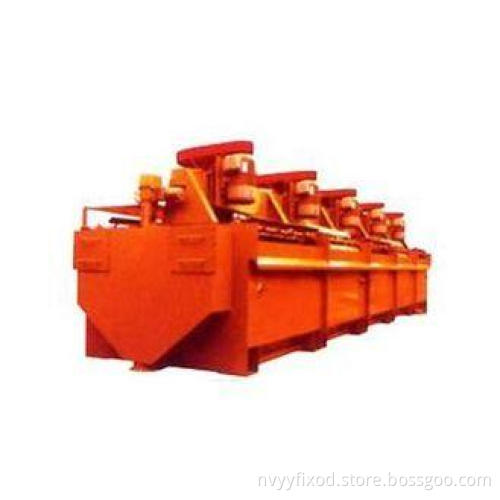

Flotation Cell Machine
Uniform Mixing XJB Bar Flotation Cell
Quick Detail:
1. Strong agitation force; nice moving trace of slurry
2. Uniform mixing of slurry, air and sedimentation rate
3. Higher flotation speed
4. Easy to restart after stopping
Description:
Structure feature
Impeller is consisted of a disc and 12 bevel cone bars. The rotating speed of bevel cone bar gets faster and faster while downing and agitation force gets stronger accordingly.
There is a convex bench and an arc-shaped steady flow plate. The convex bench works as the guide groove, which makes the mixture of air and slurry rush to the bottom of tank. And then with the steady flow plate the mixture spreads in the tank uniformly, moving in the shape of W.
Shallow tank with a depth of 2/3 of that of other flotation cell
Capacity feature
Strong agitation force; nice moving trace of slurry; suitable for the selection of coarse ore with bigger gravity and high sedimentation rate
Uniform mixing of slurry, air and sedimentation rate
Rapid flotation speed
Easy to restart after stopping
Special hint
Mechanical agitation; self-air suction; divided into suction cell (automatic suction slurry) and direct flow cell (non-automatic slurry suction).
Divided into single side scraping and double sides scraping
Applications:
Flotation cell is widely used for roughing, concentrating and reverse flotation of nonferrous metals that include copper, lead, zinc, nickel and molybdenum, ferrous metal and nonmetallic minerals.
Principle:
When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
Specifications :
| Model | Tank Type | Effective Volume(m3) | Capacity(m3/min) | Impeller Diameter(mm) | Impeller Rotation Speed(r.p.m) | Motor Power for Agitation(kw) | Motor Power for Scraper(kw)) | 4 Tank Weight(kg) |
| XJB-1 | Suction Tank | 1 | 1.5-1.7 | 400 | 440 | 5.5 | 1.5 | 5344 |
| XJB-1 | Direct Flow Cell | 1 | 1.5-1.7 | 410 | 410 | 4 | 0.8 | 5344 |
| XJB-1D | Suction Tank | 1 | 1.5-1.7 | 400 | 440 | 5.5 | 1.5 | 5479 |
| XJB-1D | Direct Flow Cell | 1 | 1.5-1.7 | 410 | 410 | 4 | 0.8 | 5479 |
| XJB-2 | Suction Tank | 2 | 1.5-1.4 | 450 | 360 | 15 | 1.1 | 9071 |
| XJB-2 | Direct Flow Cell | 2 | 1.5-1.4 | 540 | 360 | 11 | 1.1 | 9071 |
| XJB-2D | Suction Tank | 2 | 1.5-1.4 | 450 | 360 | 15 | 1.1 | 9320 |
| XJB-2D | Direct Flow Cell | 2 | 1.5-1.4 | 540 | 360 | 11 | 1.1 | 9320 |
| XJB-4 | Suction Tank | 4 | 2.0-4 | 700 | 280 | 18.5 | 1.1 | 16325 |
| XJB-4 | Direct Flow Cell | 4 | 2.0-4 | 510 | 280 | 18.5 | 1.1 | 16325 |
