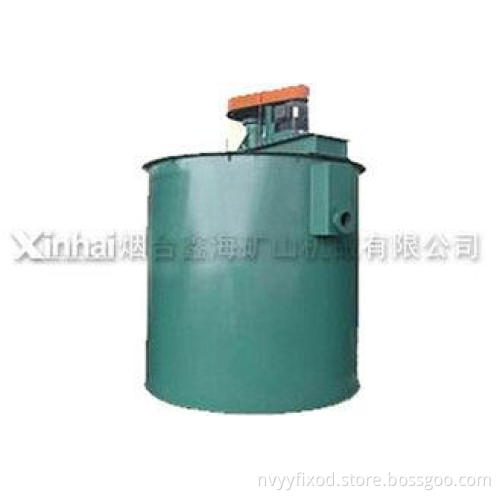

Chemical Reagent Agitation Tank
Agitation Tank For Chemical Reagent
Quick Detail:
1. High productive efficiency
2. Energy saving
3. Stable operation and low maintenance
Description:
1. The inner of cylinder is lined with Xinhai abrasion and corrosion resistant rubber
2. Impellers can be lined with Xinhai abrasion and corrosion resistant rubber to improve its abrasion and corrosion resistance performance at customers’ request.
Applications:
It is used for reagent preparation before flotation process.
Principle:
Impellers rotate quickly to make mineral pulps flow so as to render minerals and reagents contact fully with each other.
Specifications :
| Model |
Effective volume |
The impeller revolving speed |
Impeller diameter |
Motor model |
Motor power (kw) |
Weight (kg) |
| RJW-1000×1000 | 0.58 | 535 | 250 | Y90S-4 | 1.1 | 489 |
| RJW-1250×1250 | 1.4 | 492 | 310 | Y100L1-4 | 2.2 | 610 |
| RJW-1600×1600 | 2.67 | 332 | 400 | Y112M-6 | 1100 | |
| RJW-2000×2000 | 5.46 | 267 | 500 | Y132M1-6 | 4 | 2030 |
