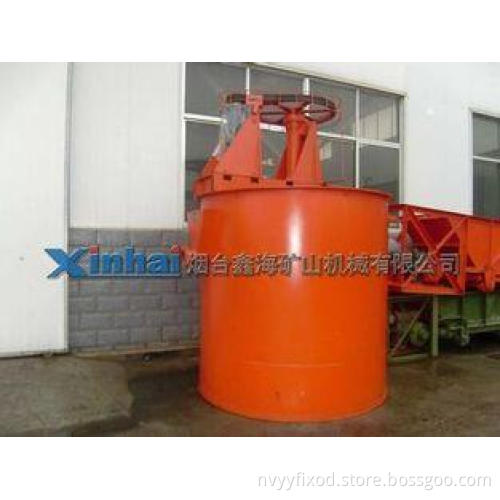

Pulp Stirring Agitation Tank
GBJ High Efficiency Agitation Tank
Quick Detail:
1. Bigger impeller diameter and linear speed, strong agitating capacity for pulp and reagent.
2. Umbrella-shaped impeller with downward pressure increases suction ability and circulating ability.
3. there is a guide flow device in the tank and a sprayer on the bottom of the guide flow device. Strong negative pressure is compresed in limited space and makes better circularing capacity of reagent and ores.
Description:
High efficiency agitating tank is used for the pulp stirring before the flotation operations, make the pulp fully mixed with the pharmacy.
Applications:
It is used for the preliminary agitation of ore pulp before the floatation beneficiation.
Principle:
The high speed rotation of impellers can stir ore pulps, which cause ore particles and reagents fully contact.
Specifications :
| Model |
Effective volume |
Impeller RPM |
Impeller diameter |
Motor Model |
Motor power (kw) |
Weight (kg) |
| GBJ-1000×1000 | 0.58 | 530 | 240 | Y112M-6 | 2.2 | 548 |
| GBJ-1250×1250 | 1.15 | 350 | Y100L2-4 | 3 | 1108 | |
| GBJ-1500×1500 | 2.2 | 320 | 420 | Y132M2-6 | 5.5 | 2207 |
| GBJ-2000×2000 | 4.4 | 240 | 560 | Y160M-6 | 7.5 | 3110 |
| GBJ-2500×2500 | 9.2 | 272 | 560 | Y180L-6 | 15 | 3939 |
| GBJ-3000×3000 | 19.1 | 220 | 700 | Y225S-8 | 18.5 | 6320 |
| GBJ-4000×4000 | 45 | 153 | 1000 | Y225M-8 | 22 | 9560 |
