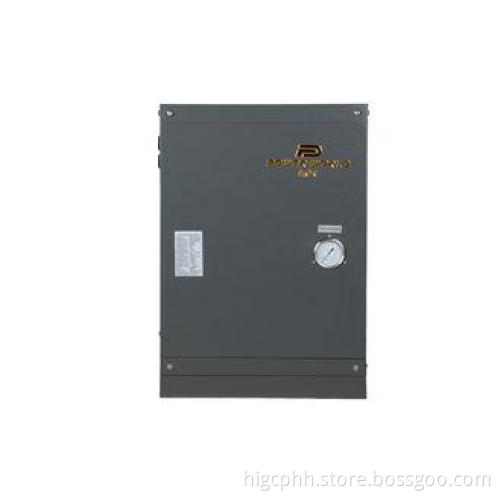

Energy Saving Groundwater To Water Heat Pump Geothermal Hea

Model No.

#MG-030A

-SFXRS

#MG-030B

-SFXRS

#MG-050

-SFXRS

#MG-060

-SFXRS

#MG-100

-SFXRS

Metal Plate

SGCC/Spray Gray

SGCC/Spray Gray

SGCC/Spray Gray

SGCC/Spray Gray

SGCC/Spray Gray

Unit Size(W*D*H)

810*635*1000

810*635*1000

810*635*1000

810*635*1000

1010*590*1080

Compressor

Copeland

Copeland

Copeland

Copeland

Copeland

Refrigerator

R407C

R407C

R407C

R407C

R407C

Voltage

220V/50Hz

380V/50Hz

380V/50Hz

380V/50Hz

380V/50Hz

Condenser

Double-pipe φ42

Double-pipe φ42

Double-pipe φ42

Double-pipe φ42

Double-pipe φ42

1-φ36.5*3300

1-φ36.5*3300

1-φ36.5*5400

1-φ36.5*6000

2-φ36.5*5400

Evaperator

MTB060-27

MTB060-27

MTB060-37

MTB060-41

MTB060-(37+37)

Thermostatic Expansion Valve

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

AC Contactor

(220V-25A)

(220V-12A)

(220V-18A)

(220V-25A)

(220V-18A)*2

Thermal Relay

(12-18A)*1

(6-9A)*1

(9-13A)*1

(9-13A)*1

(9-13A)*2

Controller

DF1SS-TS5 System

DF1SS-TS5 System

DF1SS-TS5 System

DF1SS-TS5 System

DF2SS-TS5 System

Motoro1a IC

Motoro1a IC

Motoro1a IC

Motoro1a IC

Motoro1a IC

Low Pressure Switch

0.15/0.32MPa

0.15/0.32MPa

0.15/0.32MPa

0.15/0.32MPa

0.15/0.32MPa

High Pressure Switch

3.0/3.6MPa

3.0/3.6MPa

3.0/3.6MPa

3.0/3.6MPa

3.0/3.6MPa

Wire Insert Unit

3*2.5mm2

3*2.5mm2+2*1.5mm2

3*4mm2+2*2.5mm2

3*6mm2+2*2.5mm2

3*6mm2+

2*2.5mm2

Package

Plywood CTN

Plywood CTN

Plywood CTN

Plywood CTN

Plywood CTN

Heating Capacity(kW)

10.1

11.3

20.4

24.2

41.1

Heating Input Power(kW)

2.08

2.33

4.22

5.02

8.48

Rated Current(A)

13

6

8.8

11.1

17.6

COP

4.86

4.85

4.83

4.82

4.85

Rated Water Temp.Output(℃)

55

55

55

55

55

Max Water Temp.(℃)

60

60

60

60

60

Hot Water Capacity(L/H)

217.10

242.89

438.50

520.18

883.45

Size of Hot Water Pipe(mm)

DN25

DN25

DN25

DN25

DN32

Temp.of Water In(℃)

15

15

15

15

15

Temp. Water Source Outlet(℃)

10

10

10

10

10

Water Source Cycling Capacity(m3/H)

3

3.4

5.8

6.7

11.5

Size of Water Source Pipe(mm)

DN25

DN25

DN25

DN25

DN32

Level of protection

IPX4

IPX4

IPX4

IPX4

IPX4

Electric Shock Proof

I

I

I

I

I

Noise(dB(A))

≤55

≤55

≤58

≤58

≤62

N.W./G.W.(kg)

90/96

90/96

125/135

135/145

280/295

Payment: 50% T/T in advance + 50% balance before shipment.(100% T/T for Sample/Tried Order to confirm

order.)

After-sales Service: 7 years for compressor, 1 years for whole unit.

Sampletime: 7-45 days. Leadtime: 30 days after deposited & sample approval.

Working Condition: Temp. of Water Temp. Inlet/Outlet:15℃/10℃; Intial Water Temp.: 15℃; Arrest Water

Temp.55℃.

Remarks: Offer 1% spare parts for container order only and this offer is valid within 30 days.
