Pool Heat Pump With CE CB RoHS NF414 FPP EHPA Certificates

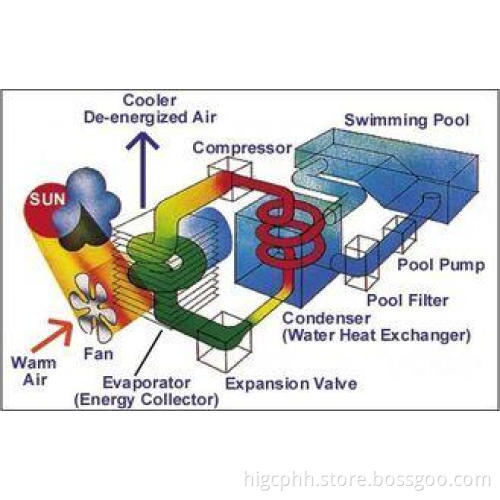

POWERWORLD pool heat pump provides the maximum energy efficiency and reliability. Working efficiently, the heat pump units absorb another 6 times of free heat from the ambient environment, and transfer it to the pool water, which makes the heating process ecological and cost saving.

1. Ultra Efficiency COP>6

With latest EEV technology, POWERWORLD pool heat pump provides superior hydraulic flow for excellent efficiency and maximum energy savings in all different climate situation.

2. High quality pure Titanium heat exchanger guaranties the heat pump can heat the pool water after chlorine, salts, and bromine treatments to more than 10 years.

3. POWERWORLD pool heat pump can work under wide ambient temperature ranges, from -70C to 430C, and provide all year-round warm water supplies, even the unit is installed in cold outdoor area.

4. Adopt high quality Danfoss 4-way valve, and combined with POWERWORLD intelligent auto-defrosting system, it assures the heat pump unit can work smoothly under severe cold environment.

5. Quiet operation
With the superior low-noise 6# fan motor, plus the inner sound-absorbing foam, which keeps you far away from the neighborhood and children complains of too high running noisy.

Heating Only Models		PHP03Hs	PHP06Hs	PHP09Hs	PHP12Hs	PHP16Hs	PHP21Hs	PHP25Hs-T	PHP30Hs-T
* Capacity at Air26℃ Water26℃
Heat Output	kW	3.9	6.00	8.70	12.00	16.00	21	25	30
Power Consumption	kW	0.75	1.05	1.50	2.05	2.70	3.58	4.2	4.8
COP		5.20	5.71	5.80	5.85	5.93	5.87	5.95	6.25
* Capacity at Air15℃ Water26℃
Heat Output	kW	3	4.50	6.45	8.90	11.80	15	17.5	22.5
Power Consumption	kW	0.7	1.02	1.45	1.98	2.65	3.35	3.9	4.7
COP		4.29	4.41	4.45	4.49	4.45	4.48	4.49	4.79
Voltage	V	220-240V/50Hz/1Ph						380-440V/50Hz/3Ph
* General Data
Rated current	A	3.4	4.6	6.5	9.1	11.5	15.5	7.5	8.5
Advised fuse	A	10	10	15	20	25	35	20	20
Advised pool volume (with cover)	m3	10-20	15-25	25-35	35-65	60-80	70-90	80-100	100-120
Advised water flux	m3/h	2.5	3.5	4.8	6.5	8	9.5	12	18
Water pipe in-out spec	mm	50	50	50	50	50	50	50	50
Compressor		Hitachi/Rotary				SANYO/Copeland/Scroll
Air flow		Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Horizontal	Vertical
Condenser		Titanium in PVC
Cabinet/Housing		Anti-rusting cabinet with polyster painting
Noise level (1m)	dB(A)	42	44	45	47	47	50	52	55
* Dimension & Weight
Net Dimension	mm	750290 500	936360560		1010370 630	1045410 695	1045410 855		655865 910
Packing Dimension	mm	855330 540	1090390580		1170415 645	1165430 740	1165430 1255		710855 1020
N.W./G.W	kg	42/45	45/48	50/54	63/68	75/82	102/112	105/115	135/150
