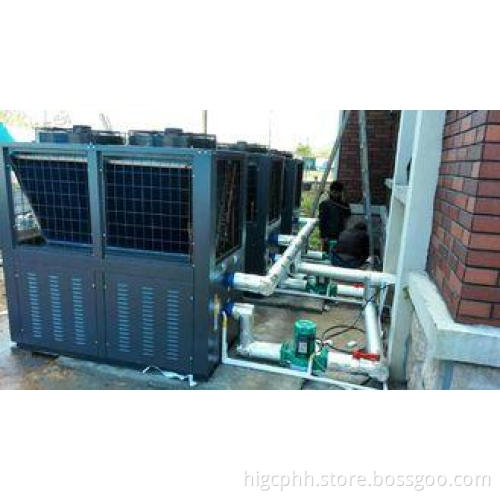

95KW Swimming Pool Heat Pump For Commercial Hotel Sanuna Projects

Specifications:

Product model		MG- 030KFXYC	MG- 030KFXYC	MG- 050KFXYC	MG- 060KFXYC	MG- 100KFXYC	MG- 120KFXYC	MG- 150KFXYC	MG- 200KFXYC	MG- 250KFXYC
Standard Configuration	Metel plate	Galvanized steel /Spray/Gray	Galvanized steel /Spray/Gray	Galvanized steel /Spray/Gray	Galvanized steel /Spray/Gray	Galvanized steel /Spray/Gray	Galvanized steel /Spray/Gray	Galvanized steel /Spray/Gray	Galvanized steel /Spray/Gray	Galvanized steel /Spray/Gray
	Body size (WDH)	1150* 490*710	1150* 490*710	1110* 490*1260	1110* 90*1260	1580* 800*1600	1580* 800*1600	1580* 800*1600	1850* 1000*1950	2000* 1100*2080
	Compressor	Copeland
	Refrigerant	R407C
	Power supply	220V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
	Condenser	Titanium tube	Titanium tube	Titanium tube	Titanium tube	Titanium tube	Titanium tube	Titanium tube	Titanium tube	Titanium tube
	Condenser	φ12.7*18m	φ12.7*18m	φ12.7*30m	φ12.7*36m	φ12.730m2	φ12.736m2	φ12.742m2	2-φ12.730m2	2-φ12.7 36m2
	Evaporator	U1/1870 875*1/	U1.3/1870 875*1/	U1/1870 875*1/	U1.3/1870 875*1/	V2/650 1260*2/	V3/650 1260*2/	V3/650 1260*2/	V3/900 1500*2/	V3/900 1700*2/
	Evaporator	φ9.52 Internal Thread/25U pipe	φ9.52 Internal Thread/25U pipe	φ9.52 Internal Thread/25U pipe	φ9.52 Internal Thread/25U pipe	φ9.52 Internal Thread/25U pipe	φ9.52 Internal Thread/25U pipe	φ9.52 Internal Thread/25U pipe	φ9.52 Internal Thread/25U pipe	φ9.52 Internal Thread/25U pipe
	Four-way valve	DSF-11	DSF-11	DSF-20	DSF-20	DSF-20*2	DSF-20*2	DSF-20*2	DSF-35*2	DSF-35*2
	Electronic expansion valve	Danfoss
	AC contactor	(220V-25A)	(220V-12A)	(220V-18A)	(220V-25A)	(220V-18A)*2	(220V-25A)*2	(220V-32A)*2	(220V-38A)*2	(220V-38A)*2
	Motor (with capacitance)	90W*1(5μf)	90W*1(5μf)	90W*2(5μf)	90W*2(5μf)	YSWF 102L50P6 -625N-550*2	YSWF 102L50P6 -625N-550*2	YSWF102L50P6 -625N-550*2	YSWF102L70P6 -753N-630*2	YSWF127L50P6 -840N-710*2
	Fan	φ490*1	φ490*1	φ490*2	φ490*2	YSWF 102L50P6 -625N-550*2	YSWF 102L50P6 -625N-550*2	YSWF102L50P6 -625N-550*2	YSWF102L70P6 -753N-630*2	YSWF127L50P6 -840N-710*2
	Controller	Sing system	Sing system	Sing system	Sing system	Dual system	Dual system	Dual system	Dual system	Dual system
	Controller	(Motorola Chip)	(Motorola Chip)	(Motorola Chip)	(Motorola Chip)	(Motorola Chip)	(Motorola Chip)	(Motorola Chip)	(Motorola Chip)	(Motorola Chip)
	Low-voltage switch	0.15/0.32MPa	0.15/0.32MPa	0.15/0.32MPa	0.15/0.32MPa	0.15/0.32MPa	0.15/0.32MPa	0.15/0.32MPa	0.15/0.32MPa	0.15/0.32MPa
	High-voltage switch	3.0/3.6MPa	3.0/3.6MPa	3.0/3.6MPa	3.0/3.6MPa	3.0/3.6MPa	3.0/3.6MPa	3.0/3.6MPa	3.0/3.6MPa	3.0/3.6MPa
	Power line connect with unit	3*2.5mm2	32.5mm2+ 21.5mm2	34mm2+ 22.5mm2	36mm2+ 22.5mm2	36mm2+ 22.5mm2	36mm2+ 22.5mm2	310mm2+ 24mm2	310mm2+ 24mm2	316mm2+ 26mm2
	Package	Polywood packing
Parameters	Heating capacity (kW)	10.1	11.3	19.8	22.8	38	45.6	53	70.5	94.6
	Input power (kW)	1.63	1.82	3.21	3.62	6.18	7.24	8.82	11.3	15.5
	Rated current (A)	8	4	6	6.5	12	13	17	21.5	26
	COP (Coefficient of Performance)	6.20	6.21	6.17	6.30	6.15	6.30	6.01	6.24	6.10
	steady water temperature (℃)	28	28	28	28	28	28	28	28	28
	Highest outlet water temperature (℃)	40	40	40	40	40	40	40	40	40
	Circulation water capacity (m3/H)	3	3.4	5.8	6.7	11.5	13.5	15.5	21.2	27.2
	IP Grade (Level of protection)	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4
	Anti-electric shock Rate	I	I	I	I	I	I	I	I	I
	Noise (dB(A))	≤55	≤55	≤58	≤58	≤66	≤66	≤68	≤70	≤70
	Net weight (kg)	100	105	125	135	280	300	372	482	582
	Gross weight (kg)	110	115	135	145	295	320	412	532	642
	Pipe size (mm)	φ50	φ50	φ50	φ50	φ63	φ63	φ75	φ75	φ90

Description:

Power World Pool Heat Pump provides the maximum energy efficiency and reliability. Working efficiently,

the heat pump units absorb another 6 times of free heat from the ambient environment, and transfer it to the

pool water, which makes the heating process ecological and cost saving.

Applications:

Business Organizations	supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations	Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places	subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments	Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course

Competitive Advantage:
