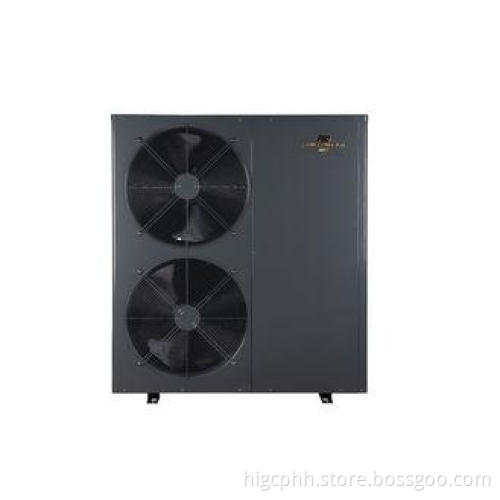

MG-050KFLW EVI low temperature air source heat pump for hot

Product model

MG-050KFLW

Body size(W*D*H) MM

1110*490*1260

Compressor

Copeland

Refrigerant

R407C

Power supply

380V/50Hz

Condenser

Efficient tank

Thermostatic expansion valve

Danfoss

AC contactor

(220V-18A)

Controller

Dual system

Low-voltage switch

0.05/0.15MPa

High-voltage switch

3.0/3.6MPa

Power line connect with unit

3*4mm2+2*2.5mm2

20℃

Heating capacity (kW)

20.6

Input power (kW)

5.4

Rated current (A)

9

COP

3.81

Production capacity (L/H)

443

-10℃

Heating capacity (kW)

12.6

Input power (kW)

5.1

COP

2.47

Production capacity (L/H)

271

-20℃

Heating capacity (kW)

10.3

Input power (kW)

5.05

COP

2.04

Production capacity (L/H)

221

-25℃

Heating capacity (kW)

9.5

Input power (kW)

5.05

COP

1.88

Production capacity (L/H)

204

Rated outlet hot water temperature (℃)

55

Highest outlet hot water temperature(℃)

60

IP Grade (Level of protection)

IPX4

Anti-electric shock Rate

I

Noise (dB(A))

≤58

Net weight/Gross weight((kg)

145/155

Diameter of pipe (mm)

DN25

Ambient Temp(℃)

Unit COP(Coefficient of Performance)(KW/KW)

-25

3.24

3.24

2.96

2.52

2.28

2.03

1.93

1.83

1.88

-20

3.95

3.95

3.61

2.86

2.63

2.24

2.21

2.04

2.04

-15

4.52

4.52

4.13

3.30

3.03

2.56

2.44

2.24

2.24

-10

5.13

5.13

4.68

3.90

3.47

3.03

2.77

2.47

2.47

-5

5.79

5.75

5.27

4.42

3.91

3.45

3.16

2.75

2.76

0

6.79

6.75

5.96

5.16

4.42

3.88

3.51

3.10

3.06

5

7.52

7.48

6.64

5.78

4.97

4.46

3.96

3.55

3.41

10

8.42

8.38

6.90

6.03

5.21

4.67

4.13

3.76

3.57

20

9.04

9.00

7.17

6.29

5.46

4.93

4.38

4.00

3.81

Water Temp.(℃)

9

15

20

25

30

35

40

45

50

55

Business Organizations

supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale

sales, star-rated hotels, restaurants, travel agencies, pharmacy.

Financial Organizations

Banks, negotiable securities, funds, insurance companies, pawnshops;

Non-profit Organizations: Telecommunications, post offices, hospital, schools;

Public Places

subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls

,stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;

Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms,

property brokers;

Entertainments

Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes,

Internet bars, beauty shops, golf course
