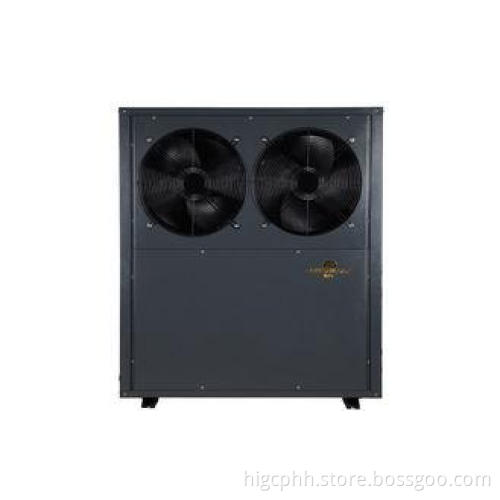

11KW EVI TOP Hot Water COP Air To Water Copeland Copressor

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

11KW EVI TOP COP Air To Water Heater In COLD AREA For Hot Water With Horizontal Cyan SGCC Casing

Description:

1) EVI compressor special designed for high COP (Coefficient of Performance): 4.5 even in bad weather condiction or area.

2) Base frame and externel panels made of galvanized powder coated steel

3) Water exchanger equipped with high efficiency tube in shell heat exchanger

4) Reliable compressor with R407C refrigerant

5) Stable water flow switch & backflow proof.

6) Fully sealed control box with water proof level IPX4

7) Intelligent microprocessor double control systems with Motorola IC, auto memory & nighlight.

8) Air exchanger (fin-coil) with hydrophilic coating

9) Thermostatic heating element for evaporator, anti-frosting every 30 minutes per day.

10)EVERY capillary tube of DANFOSS/EMERSON expansion valve full-covered by silicon/soft pipe refucing buffer friction, subtle vibraction from compressor/fan, keeping strong as 10-year working life,even longer.

11)No need of auxiliary electrical heating and works well even at -30 ℃.

12) Lowest noise that 6T fan motor & Mitsubishu/Copeland high efficient compressor, thermostability PE material with bond for soundproof & heat preservation.

Specifications:

Model No.	#MG-020-KFXRS	#MG-030A-KFXRS	#MG-030B-KFXRS	#MG-050-KFXRS
Heating Capacity(kW)	7.8	11	12	18.8
Heating Input Power(kW)	1.78	2.52	2.78	4.42
COP(Coefficient of Performance)	4.38	4.37	4.32	4.25
Voltage	220V/50Hz	220V/50Hz	380V/50Hz	380V/50Hz
Rated Current(A)	14	14	7.5	13
Advised cable	3*2.5mm²	3*2.5mm²	32.5mm²+21.5mm²	34mm²+22.5mm²
IP Grade (Level of protection)	I	I	I	I
Level of protection	IPX4	IPX4	IPX4	IPX4
Working Condition(℃)	-25 to 43	-25 to 43	-25 to 43	-25 to 43
Rated Water Temp.(℃)	55	55	55	55
Max Water Temp.(℃)	60	60	60	60
Hot Water Capacity(L/H)	112	158	172	269
Water Connection Size(mm)	DN25	DN25	DN25	DN25
Compressor	Mitsubishu	Copeland	Copeland	Copeland
Thermostastic Expansion Valve	Danfoss	Danfoss	Danfoss	Danfoss
Air Flow	Side air-discharge	Side air-discharge	Side air-discharge	Side air-discharge
Condenser	Efficient Tank	Efficient Tank	Efficient Tank	Efficient Tank
Refrigerator	R410A	R407C	R407C	R407C
Noise(dB(A))	≤55	≤55	≤55	≤58
Unit Size(WDH)	1150490710	11104901260	11104901260	11104901260
N.W./G.W.(KG)	100/106	110/120	120/130	145/155

Applications:

Business Organizations	supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations	Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places	subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments	Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course

Competitive Advantage:
