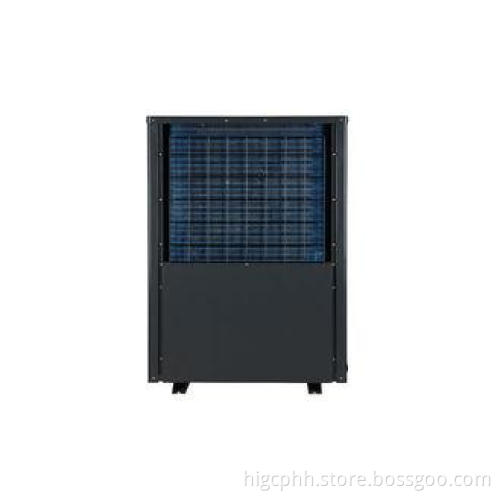

Outdoor Cool Water / Hot Water Heating And Cooling Heat Pum

Model No.

#MG-

030A-

KFXLN

#MG-

030B-

KFXLN

#MG-

050-

KFXLN

#MG-

060-

KFXLN

#MG-

100-

KFXLN

#MG-

120-

KFXLN

#MG-

150-

KFXLN

#MG-

200-

KFXLN

#MG-

250-

KFXLN

Heating

Capacity(kW)

8.1

9.1

16.4

19.5

32.8

39.1

43.4

57.2

75.6

Heating Input

Power(kW)

2.03

2.29

4.09

4.9

8.24

9.84

10.6

14.2

18.8

Rated Current(A)

10.2

4.5

7.5

8.5

14.5

17

20

26

33

COP(Coefficient

of Performance)

3.99

3.97

4.01

3.98

3.98

3.97

4.09

4.03

4.02

Rated Water

Temp.Output(℃)

40

40

40

40

40

40

40

40

40

Max Water

Temp.(℃)

45

45

45

45

45

45

45

45

45

Hot Water

Capacity(M3/H)

2

2.2

4

4.6

8

9.2

10.5

13.8

18.5

Cooling Capacity

(KW)

6.3

7.1

12.8

15.1

25.6

29.6

33.4

43.8

60.2

Cooling Input

Power (KW)

2.32

2.62

4.71

5.42

9.42

10.6

12.3

15.9

22.3

Rated Current(A)

10.7

4.8

8

9.3

16

18.5

22

28

36

COP(Coefficient

of Performance)

2.72

2.71

2.72

2.79

2.72

2.79

2.72

2.75

2.70

Rated Water

Input Temp.(℃)

12

12

12

12

12

12

12

12

12

Rated Water

Output Temp.

(℃)

7

7

7

7

7

7

7

7

7

Water Capacity

(M3/H)

1.4

1.6

2.8

3.4

5.6

6.7

7.5

10.2

13.5

Voltage

220V/

50Hz

380V/

50Hz

380V/

50Hz

380V/

50Hz

380V/

50Hz

380V/

50Hz

380V/

50Hz

380V/

50Hz

380V/

50Hz

Advised cable

3*2.5mm2

3*2.5mm2

+2*

1.5mm2

3*4mm2

+2*

2.5mm2

3*6mm2

+2*

2.5mm2

3*6mm2

+2*

2.5mm2

3*6mm2

+2*

2.5mm2

3*10mm2

+2*

4mm2

3*10mm2

+2*

4mm2

3*16mm2

+2*

6mm2

Level of

protection

IPX4

IPX4

IPX4

IPX4

IPX4

IPX4

IPX4

IPX4

IPX4

IP Grade (Level

of protection)

I

I

I

I

I

I

I

I

I

Working

Condition

-7 to 43

-7 to 43

-7 to 43

-7 to 43

-7 to 43

-7 to 43

-7 to 43

-7 to 43

-7 to 43

Water

Connection

Size (mm)

DN25

DN25

DN25

DN25

DN32

DN32

DN50

DN50

DN65

Compressor

Copeland

Thermostatic

Expansion

Valve

Danfoss

Air Flow

Side Fan

Side Fan

Side Fans

Top Fans

Condenser

Double-

pipe φ42

Double-

pipe φ42

Double-

pipe φ42

Double-

pipe φ42

Double-

pipe φ42

Double-

pipe φ42

Shell

type φ273

Shell

type φ273

Shell

type

φ273

Refrigerator

R407C

R407C

R407C

R407C

R407C

R407C

R407C

R407C

R407C

Noise 1m

(dB(A))

≤55

≤55

≤58

≤58

≤66

≤66

≤68

≤68

≤72

Net Dimension

(W*D*H)

830

*490

*1160

830

*490

*1160

1110

*490

*1260

1110

*490

*1260

1580

*800

*1600

1580

*800

*1600

1580

*800

*1600

1850

*1000

*1950

2000

*1100

*2080

N.W./G.W.(kg)

96/104

96/104

140/150

144/154

280/295

300/320

372/412

482/532

582/642

Payment: 50% T/T in advance + 50% balance before shipment.(100% T/T for Sample/Try Order)

After-sales Service: 1 year warranty in which it's our responsiblity only when testified problems are caused by

product quality or its raw material.

Sampletime: 7-45 days. Leadtime: 30 days after deposited & sample approval.

Testing Condition: Heating-dry bulb 7℃ & wet bulb 6℃; Cooling-dry bulb 35℃ & wet bulb 24℃.

Remarks: Offer 1% spare parts for container order only and this offer is valid within 30 days.

Business Organizations

supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale

sales, star-rated hotels, restaurants, travel agencies, pharmacy.

Financial Organizations

Banks, negotiable securities, funds, insurance companies, pawnshops;

Non-profit Organizations: Telecommunications, post offices, hospital, schools;

Public Places

subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition

halls,stadiums, museums, convention centers, ticket agencies, HR market, lottery

centers;Real Estate Property: Apartments, villas, offices, commercial buildings, model

rooms,

property brokers;

Entertainments

Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes,

Internet bars, beauty shops, golf course
