Commercial Cooling And Heating Heat Pump , Hot Water Heat P

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

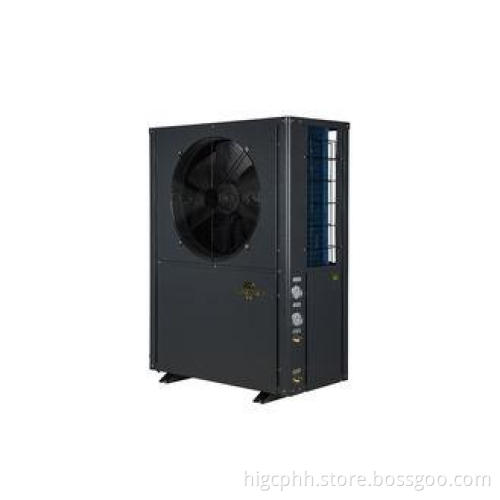

8.1KW Heating And 6.3KW Cooling Capacity Heat Pump For Hot And Cool Water

Parameters

MG-030KFXLN

Metel plate

Galvanized steel/Spray/Gray

Body size(W*D*H)

830*490*1160

Compressor

Copeland

Refrigerant

R407C

Power supply

220V/50Hz

380V/50Hz

Condenser

Double pipeφ42

1-φ36.5*3300

Evaporator

U-2/1200*550/

φ9.52 Internal Thread/25U pipe

Four-way valve

DSF-11

Thermostatic expansion valve

Danfoss

AC contactor

(220V-25A)

(220V-12A)

Motor (with capacitance)

90W*1(5μf)

Fan

φ490*1

Controller

Sing system

(Motorola Chip)

Low-voltage switch

0.15/0.32MPa

High-voltage switch

3.0/3.6MPa

Power line connect with unit

3*2.5mm²

3*2.5mm²+2*1.5mm²

Package

Polywood packing

Heating

Heating capacity(kW)

8.1

9.1

Heating input power(kW)

2.03

2.29

Rated current (A)

10.2

4.5

COP

3.99

3.97

Rated inlet water temperature(℃)

Rated outlet hot water temperature (℃)

Water-carrying capacity(L/H)

2000

2200

Cooling

Cooling capacity(kW)

6.3

7.1

Cooling input power(kW)

2.32

2.62

Rated current (A)

10.7

4.8

COP (Coefficient of Performance)

2.72

2.71

Rated inlet water temperature(℃)

Rated outlet hot water temperature (℃)

Water-carrying capacity(L/H)

1400

1600

IP Grade (Level of protection)

IPX4

Noise (dB(A))

≤55

Net weight/Gross weight(kg)

96/104

Diameter of pipe (mm)

DN25

Description

1. Environmental friendly and safe
Electric parts and water system is completely cut off, ensuring security water use, no pollution to the atmosphere and free of greenhouse effect and it is the safest water heater

2. Wide climatic zone adaptability
Our heat pumps with special designing possess better climatic adaptability, can work from -25℃ to 43℃.

3. Energy-saving
Heat pump water heater is a high efficient transferring heating equipment which is driven by electricity. The operating cost is only 1/4 of electric water heater, 1/3 of gas water heater.

4. Automatic intelligent control system
Adopting intelligent computerized automatic control system, no manual cost, easy to operate, convenient, make heat pump work safely and reliably.
Control panel with modularized unit design can control more flexible heat pumps packs, with user-friendly operating system interface, easy to operate..

5. Advanced testing methods
Adopting world-class Enthalpy potential laboratory to test heat pumps, except basic testing items, we also test heat pump in the ambient of temperature of -30℃ to test our heat pump performance.

6. Widely used
Heat pump is applied to hot water for household and commercial use like families, schools, hospitals, shower center, swimming pools, etc. and industrial use like electroplating, drying, etc.

Competitive Advantage:

1. Strong SGCC Casing Dark Cyan Charming Design;
2. Smart control double systems;
3. Danfoss/Copeland/Emerson/Eaton etc. precise accessories are constructing outstanding quality
& high efficient performance.
4. Excellent for both hot water, heating & cooling, meeting all demands you need.

Welcome you visiting Power World heat pump website, please send us an inquiry and let us know your interests and requirements, we will reply you at once.
Wish you have a good day.
