Cooling And Heating Heat Pump With16.4KW Heating / 12.8KW C
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|

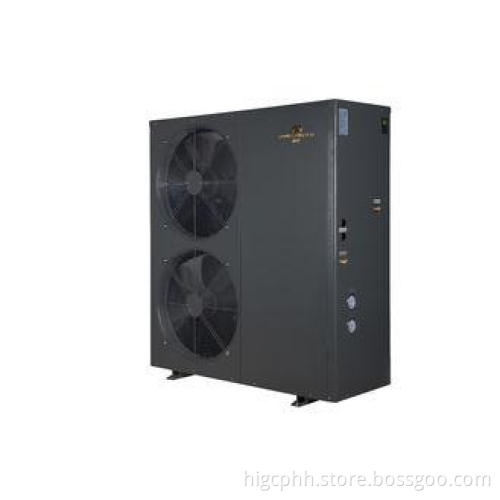

Cooling And Heating Heat Pump With16.4KW Heating and 12.8KW Cooling Capacity
Parameters | MG-050KFXLN | ||
Metel plate |
|
||
Body size(W*D*H) | 1110*490*1260 | ||
Compressor | Copeland | ||
Refrigerant | R407C | ||
Power supply | 380V/50Hz | ||
Condenser | Double pipeφ42 | ||
1-φ36.5*5400 | |||
Evaporator | L-2/990*1200/ | ||
φ9.52 Internal Thread/25U pipe | |||
Four-way valve | DSF-20 | ||
Thermostatic expansion valve | Danfoss | ||
AC contactor | (220V-18A) | ||
Motor (with capacitance) | 90W*2(5μf) | ||
Fan | φ490*2 | ||
Controller | Sing system | ||
(Motorola Chip) | |||
Low-voltage switch | 0.15/0.32MPa | ||
High-voltage switch | 3.0/3.6MPa | ||
Power line connect with unit | 3*4mm2+2*2.5mm2 | ||
Package | Polywood packing | ||
Heating | Heating capacity(kW) | 16.4 | |
Heating input power(kW) | 4.09 | ||
Rated current (A) | 7.5 | ||
COP | 4.01 | ||
Rated inlet water temperature(℃) | 40 | ||
Rated outlet hot water temperature (℃) | 45 | ||
Water-carrying capacity(L/H) | 4000 | ||
Cooling | Cooling capacity(kW) | 12.8 | |
Cooling input power(kW) | 4.71 | ||
Rated current (A) | 8 | ||
COP (Coefficient of Performance) | 2.72 | ||
Rated inlet water temperature(℃) | 12 | ||
Rated outlet hot water temperature (℃) | 7 | ||
Water-carrying capacity(L/H) | 2800 | ||
IP Grade (Level of protection) | IPX4 | ||
Noise (dB(A)) | ≤58 | ||
Net weight/Gross weight(kg) | 140/150 | ||
Diameter of pipe (mm) | DN25 |
Description
1. Environmental friendly and safe
Electric parts and water system is completely cut off, ensuring security water use, no pollution to the atmosphere and free of greenhouse effect and it is the safest water heater
2. Wide climatic zone adaptability
Our heat pumps with special designing possess better climatic adaptability, can work from -25℃ to 43℃.
3. Energy-saving
Heat pump water heater is a high efficient transferring heating equipment which is driven by electricity. The operating cost is only 1/4 of electric water heater, 1/3 of gas water heater.
4. Automatic intelligent control system
Adopting intelligent computerized automatic control system, no manual cost, easy to operate, convenient, make heat pump work safely and reliably.
Control panel with modularized unit design can control more flexible heat pumps packs, with user-friendly operating system interface, easy to operate..
5. Advanced testing methods
Adopting world-class Enthalpy potential laboratory to test heat pumps, except basic testing items, we also test heat pump in the ambient of temperature of -30℃ to test our heat pump performance.
6. Widely used
Heat pump is applied to hot water for household and commercial use like families, schools, hospitals, shower center, swimming pools, etc. and industrial use like electroplating, drying, etc.
Competitive Advantage:
1. Strong SGCC Casing Dark Cyan Charming Design;
2. Smart control double systems;
3. Danfoss/Copeland/Emerson/Eaton etc. precise accessories are constructing outstanding quality
& high efficient performance.
4. Excellent for both hot water, heating & cooling, meeting all demands you need.
