10.1KW Heating Capacity High COP Ground Source Heat Pump fo

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

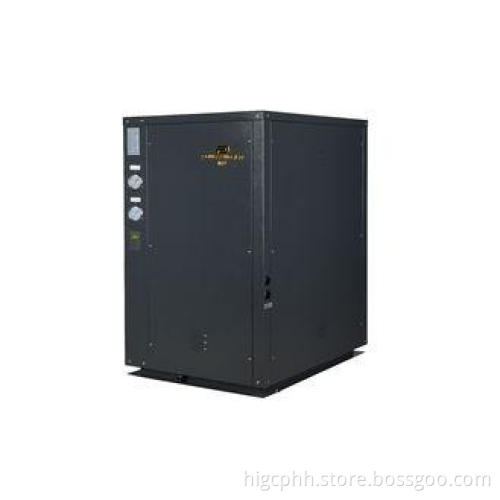

Ground Source Heat Pump for Hot Water 10.1KW Heating Capacity with high COP

Specifications:

Model No.	MG-030DFXRS	MG-030DFXRS
Metal Plate	SGCC/Spray Gray	SGCC/Spray Gray
Unit Size(WDH)	7105201000	7105201000
Compressor	Copeland	Copeland
Refrigerator	R407C	R407C
Voltage	220V/50Hz	380V/50Hz
Condenser	Double-pipe φ42	Double-pipe φ42
Condenser	1-φ36.5*3300	1-φ36.5*3300
Evaperator	MTB060-27	MTB060-27
Evaperator	MTB060-27	MTB060-27
Thermostatic Expansion Valve	Danfoss	Danfoss
AC Contactor	(220V-25A)	(220V-12A)
Thermal Relay	(12-18A)*1	(6-9A)*1
Low Pressure Switch	0.15/0.32MPa	0.15/0.32MPa
High Pressure Switch	3.0/3.6MPa	3.0/3.6MPa
Wire Insert Unit	3*2.5mm²	32.5mm²+21.5mm²
Package	Plywood CTN	Plywood CTN
Heating Capacity(kW)	10.1	11.3
Heating Input Power(kW)	2.08	2.33
Rated Current(A)	13	6
COP	4.86	4.85
Rated Water Temp.Output(℃)	55	55
Max Water Temp.(℃)	60	60
Hot Water Capacity(L/H)	217.10	242.89
Size of Hot Water Pipe(mm)	DN25	DN25
Temp.of Water In(℃)	15	15
Temp. Water Source Outlet(℃)	10	10
Water Source Cycling Capacity(m³/H)	3	3.4
Size of Water Source Pipe(mm)	DN25	DN25
Level of protection	IPX4	IPX4
Electric Shock Proof	I	I
Noise(dB(A))	≤55	≤55
N.W./G.W.(kg)	90/96	90/96

Application:

Business Organizations	supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations	Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places	subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments	Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course

Description:
1. Strong SGCC Casing Dark Cyan Charming Design;
2. Smart control double systems;
3. Danfoss/Copeland/Emerson/Eaton etc. precise accessories are constructing outstanding quality
& high efficient performance.
4. Excellent for both hot water, heating & cooling, meeting all demands you need.
