Contact Now| Place of Origin: | China |
|---|

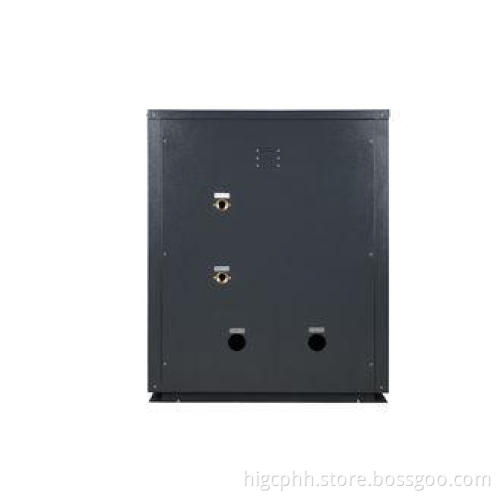

Ground Source Heat Pump for heating and cooling 11.3KW Heating Capacity
Specifications:
| Parameters | MG-030DFXRS | MG-030DFXRS |
| Metel plate | Galvanized steel/Spray/Gray | Galvanized steel/Spray/Gray |
| Body size(W*D*H) | 710*520*1000 | 710*520*1000 |
| Compressor | Copeland Copeland | |
| Refrigerant | R407C R407C | |
| Power supply | 220V/50Hz | 380V/50Hz |
| Condenser | Double pipeφ42 | Double pipeφ42 |
| 1-φ36.5*3300 | 1-φ36.5*3300 | |
| Evaporator | MTB060-27 | MTB060-27 |
| Thermostatic expansion valve | Danfoss Danfoss | |
| AC contactor | (220V-25A) | (220V-12A) |
| Thermorelay | (12-18A)*1 | (6-9A)*1 |
| Controller | DF1SS-TS5(Motorola Chip) | DF1SS-TS5(Motorola Chip) |
| Low-voltage switch | 0.15/0.32MPa | 0.15/0.32MPa |
| High-voltage switch | 3.0/3.6MPa | 3.0/3.6MPa |
| Power line connect with unit | 3*2.5mm2 | 3*2.5mm2+2*1.5mm2 |
| Package | Polywood Polywood | |
| Heating capacity (kW) | 10.1 | 11.3 |
| Input power (kW) | 2.08 | 2.33 |
| Rated current (A) | 13 | 6 |
| COP (Coefficient of Performance) | 4.86 | 4.85 |
| Rated outlet hot water temperature (℃) | 55 | 55 |
| Highest outlet hot water temperature(℃) | 60 | 60 |
| Production capacity (L/H) | 217 | 243 |
| Hot water Pipe size(mm) | DN25 | DN25 |
| Heat source inlet water temperature(℃) | 15 | 15 |
| Heat source outlet water temperature(℃) | 10 | 10 |
| Heat source circulation water capacity(L/H) | 3000 | 3400 |
| Heat source pipe size(mm) | DN25 | DN25 |
| IP Grade (Level of protection) | IPX4 | IPX4 |
| Anti-electric shock Rate | I | I |
| Noise (dB(A)) | ≤55 | ≤55 |
| Net weight(kg) | 90 | 90 |
| Gross weight(kg) | 96 | 96 |
Application:
|
Business Organizations |
supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy. |
|
Financial Organizations |
Banks, negotiable securities, funds, insurance companies, pawnshops; |
|
Public Places |
subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers; |
|
Entertainments |
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course |
Description:
1. Strong SGCC Casing Dark Cyan Charming Design;
2. Smart control double systems;
3. Danfoss/Copeland/Emerson/Eaton etc. precise accessories are constructing outstanding quality
& high efficient performance.
4. Excellent for both hot water, heating & cooling, meeting all demands you need.
