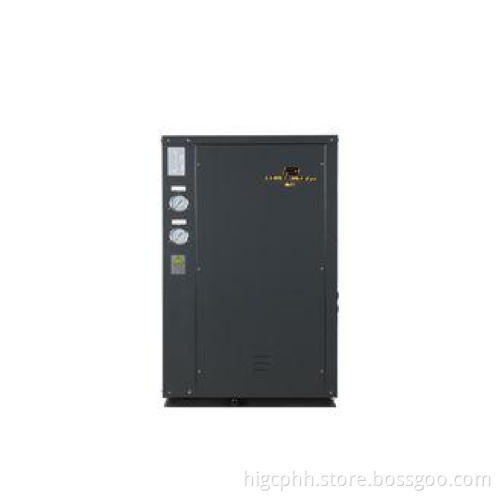

380V / 50Hz Geothermal Ground To Water Heat Pump For Living

Model No.

#MG-030A-DFXRS

#MG-030B-DFXRS

#MG-050-DFXRS

#MG-060-DFXRS

#MG-100-DFXRS

Metal Plate

SGCC/Spray Gray

SGCC/Spray Gray

SGCC/Spray Gray

SGCC/Spray Gray

SGCC/Spray Gray

Unit Size(W*D*H)

710*520*1000

710*520*1000

710*520*1000

710*520*1000

1010*590*1400

Compressor

Copeland

Copeland

Copeland

Copeland

Copeland

Refrigerator

R407C

R407C

R407C

R407C

R407C

Voltage

220V/50Hz

380V/50Hz

380V/50Hz

380V/50Hz

380V/50Hz

Condenser

Double-pipe φ42

Double-pipe φ42

Double-pipe φ42

Double-pipe φ42

Double-pipe φ42

1-φ36.5*3300

1-φ36.5*3300

1-φ36.5*5400

1-φ36.5*6000

2-φ36.5*5400

Evaperator

MTB060-27

MTB060-27

MTB060-37

MTB060-41

MTB060-(37+37)

Thermostatic Expansion Valve

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

AC Contactor

(220V-25A)

(220V-12A)

(220V-18A)

(220V-25A)

(220V-18A)*2

Thermal Relay

(12-18A)*1

(6-9A)*1

(9-13A)*1

(9-13A)*1

(9-13A)*2

Controller

DF1SS-TS5 System

DF1SS-TS5 System

DF1SS-TS5 System

DF1SS-TS5 System

DF2SS-TS5 System

Motoro1a IC

Motoro1a IC

Motoro1a IC

Motoro1a IC

Motoro1a IC

Low Pressure Switch

0.15/0.32MPa

0.15/0.32MPa

0.15/0.32MPa

0.15/0.32MPa

0.15/0.32MPa

High Pressure Switch

3.0/3.6MPa

3.0/3.6MPa

3.0/3.6MPa

3.0/3.6MPa

3.0/3.6MPa

Wire Insert Unit

3*2.5mm²

3*2.5mm²+

2*1.5mm²

3*4mm²+

2*2.5mm²

3*6mm²+

2*2.5mm²

3*6mm²+

2*2.5mm²

Package

Plywood CTN

Plywood CTN

Plywood CTN

Plywood CTN

Plywood CTN

Heating Capacity(kW)

10.1

11.3

20.4

24.2

41.1

Heating Input Power(kW)

2.08

2.33

4.22

5.02

8.48

Rated Current(A)

13

6

8.8

11.1

17.6

COP

4.86

4.85

4.83

4.82

4.85

Rated Water Temp.Output(℃)

55

55

55

55

55

Max Water Temp.(℃)

60

60

60

60

60

Hot Water Capacity(L/H)

217.10

242.89

438.50

520.18

883.45

Size of Hot Water Pipe(mm)

DN25

DN25

DN25

DN25

DN32

Temp.of Water In(℃)

15

15

15

15

15

Temp. Water Source Outlet(℃)

10

10

10

10

10

Water Source Cycling Capacity(m³/H)

3

3.4

5.8

6.7

11.5

Size of Water Source Pipe(mm)

DN25

DN25

DN25

DN25

DN32

Level of protection

IPX4

IPX4

IPX4

IPX4

IPX4

Electric Shock Proof

I

I

I

I

I

Noise(dB(A))

≤55

≤55

≤58

≤58

≤62

N.W./G.W.(kg)

90/96

90/96

125/135

135/145

280/295

Payment: 50% T/T in advance + 50% balance before shipment.(100% T/T for Sample/Tried Order to confirm order.)

After-sales Service: 7 years for compressor, 1 years for whole unit.

Sampletime: 7-45 days. Leadtime: 30 days after deposited & sample approval.

Working Condition: Temp. of Water Temp. Inlet/Outlet:15℃/10℃; Intial Water Temp.:15℃; Arrest Water Temp.55℃.

Remarks: Offer 1% spare parts for container order only and this offer is valid within 30 days.

Business Organizations

supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

Financial Organizations

Banks, negotiable securities, funds, insurance companies, pawnshops;

Non-profit Organizations: Telecommunications, post offices, hospital, schools;

Public Places

subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;

Entertainments

Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
