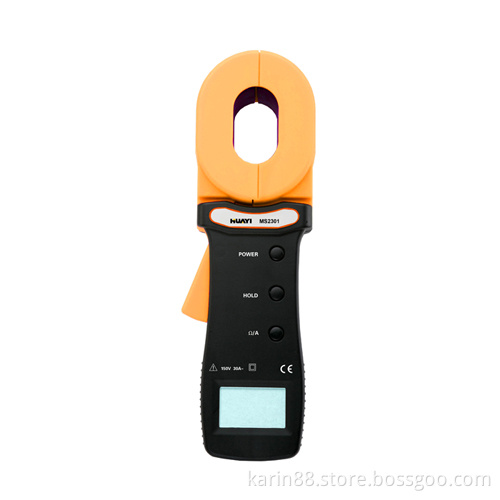

MS2301 Earth resistance clamp
Features
• •0.01ΩHIGH ACCURACY FOR LOW RESISITANCE MEASUREMENT
• •0.001ΩHIGH RESOLUTION
• •RECORD 99 RESISTANCE MEASUREMENT VALUES
• •SET ALARM THRESHOLD IN 1ΩTO 100Ω
• •MEASURE LEAKAGE CURRENT AND NEUTRAL CURRENT
• •45mmX 32mm LARGE JAWS OF EXACTITUDE MEASUREMENT PROBE
• •INDICATION THE CAPACITY OF THE BATTERIES
• •DIGITAL MEASUREMENT, AUTORANGE, EASY OPERATION
• •DOUBLE INSULATION, STRENGTHEN THE INTERFERENCE RESISTANCE
• •UNTOUCHED MEASUREMENT, ENSURE THE SAFETY
• •ONE SECOND PER TEST, IMPLY THE QUICK MEASUREMENT.
• •DISPLAY: LCD 3 3/4 DIGITS
|
Resistance |
0.010Ω~0.099Ω |
0.001Ω |
±(1%+0.01Ω) |
|
0.10Ω~0.99Ω |
0.01Ω |
±(1%+0.01Ω) |
|
|
1.0Ω~49.9Ω |
0.1Ω |
±(1.5%+0.1Ω) |
|
|
50.0Ω~99.5Ω |
0.5Ω |
±(2%+0.5Ω) |
|
|
100Ω~199Ω |
1Ω |
±(3%+1Ω) |
|
|
200Ω~395Ω |
5Ω |
±(6%+5Ω) |
|
|
400Ω~590Ω |
10Ω |
±(10%+10Ω) |
|
|
600Ω~1000Ω |
20Ω |
±(20%+20Ω) |
|
|
Current |
0~80mA |
0.05mA |
±(2.0%+0.05mA) |
|
80mA~650mA |
0.5mA |
±(2.0%+0.5mA) |
|
|
650mA~4A |
5mA |
±(2.0%+5mA) |
|
|
4A~30A |
10mA |
±(2.0%+5mA) |
